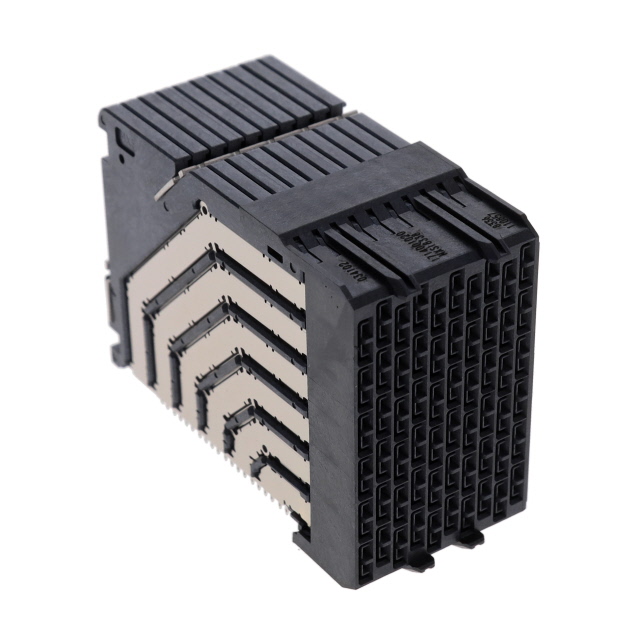

1714001020

Manufacturer :

Molex

Product Category :

Specialized

Insertion Force-Max :

.5838 N

Connector Style :

Impel™

Termination :

Press-Fit

Rated Current (Signal) :

0.75A

Total Number of Contacts :

120

Connector Type :

Receptacle, Female Sockets

Pbfree Code :

yes

Body Length or Diameter :

0.778 inch

Length - Termination :

0.051 inch

Number of Columns :

10

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Usage :

Daughtercard

PCB Contact Pattern :

STAGGERED

Insulation Material :

GLASS FILLED LIQUID CRYSTAL POLYMER

Number of Rows :

12

Contact Finish Thickness :

30.0μin 0.76μm

Mounting Option 1 :

LOCKING

Number of Positions Loaded :

All

Body Breadth :

1.209 inch

Plating Thickness :

30μin

Contact Layout, Typical :

60 Differential Pairs

Pitch :

0.075 1.90mm

Operating Temperature (Max) :

85°C

Number of Conductors :

ONE

Contact Pattern :

STAGGERED

RoHS Status :

ROHS3 Compliant

Operating Temperature (Min) :

-55°C

Mounting Type :

Through Hole

Packaging :

Tray

Withdrawl Force-Min :

.14734 N

Dielectric Withstanding Voltage :

500VAC V

Reference Standard :

UL

Reliability :

COMMERCIAL

Number of Positions :

120

Polarization Key :

POLARIZED HOUSING

Material Flammability Rating :

UL94 V-0

Published :

2014

Series :

Impel 171400

Factory Lead Time :

12 Weeks

Durability :

200 Cycles

Contact Finish :

Gold

Contact Material :

NOT SPECIFIED
