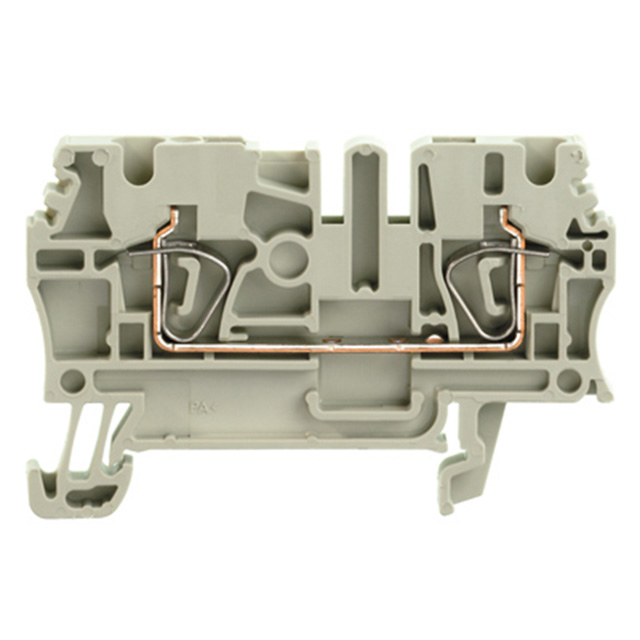

1683310000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Current :

21A

Flammability Rating :

UL94 V-0

Number of Positions :

2

Wire Gauge (Max) :

30 AWG

Voltage :

600V

Published :

2009

Safety Approval :

UL; CSA; CE

Type :

Feed Through

Termination Style :

Push In, Spring

Current Rating :

24A

Material Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Wire Gauge or Range - mm² :

0.5-4mm2

Number of Rows :

2

Current - UL :

25A

HTS Code :

8536.69.40.40

Housing Color :

Grey

Orientation :

Straight

Color :

Gray

Additional Feature :

STANDARD: UL 94V-0

Wire Gauge or Range - AWG :

12-30 AWG

Approval Agency :

CE, CSA, IEC, UR

Length :

59.5mm

Number of Decks :

1

Voltage - IEC :

800V

Height :

38.5mm

Material - Insulation :

Thermoplastic, Wemid

Wire Gauge (Min) :

12 AWG

Pbfree Code :

yes

Fastening Method :

SPRING LOADED

Factory Lead Time :

6 Weeks

Moisture Sensitivity Level (MSL) :

Not Applicable

Radiation Hardening :

No

Housing Material :

Nylon

Stripping Length :

10mm

Series :

Z

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Number of Levels :

1

Width :

5.1mm

Voltage - Rated :

8kV
