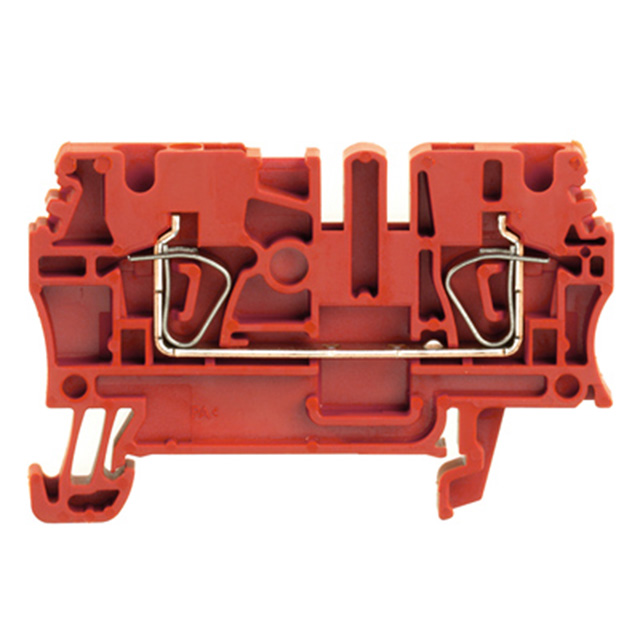

1683260000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Height :

38.5mm

Approval Agency :

CE, CSA, IEC, UR

Wire Gauge (Max) :

30 AWG

Housing Material :

Nylon

Voltage - IEC :

800V

Color :

Red

Fastening Method :

SPRING LOADED

Factory Lead Time :

8 Weeks

Current Rating :

24A

Width :

5.1mm

Safety Approval :

UL; CSA; CE

ECCN Code :

EAR99

Wire Gauge (Min) :

12 AWG

Material - Insulation :

Thermoplastic, Wemid

Radiation Hardening :

No

Orientation :

Straight

Voltage - Rated :

8kV

Moisture Sensitivity Level (MSL) :

Not Applicable

Additional Feature :

STANDARD: UL 94V-0

Type :

Feed Through

Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Voltage :

600V

Length :

59.5mm

Wire Gauge or Range - mm² :

0.5-4mm2

Lead Free :

Lead Free

HTS Code :

8536.69.40.40

RoHS Status :

RoHS Compliant

Max Operating Temperature :

120°C

Number of Decks :

1

Max Current Rating :

25A

Material Flammability Rating :

UL94 V-0

Current - UL :

25A

Pbfree Code :

yes

Stripping Length :

10mm

Number of Levels :

1

Wire Gauge or Range - AWG :

12-30 AWG

Series :

Z

Number of Rows :

2

Current :

21A

Published :

2009

Min Operating Temperature :

-50°C
