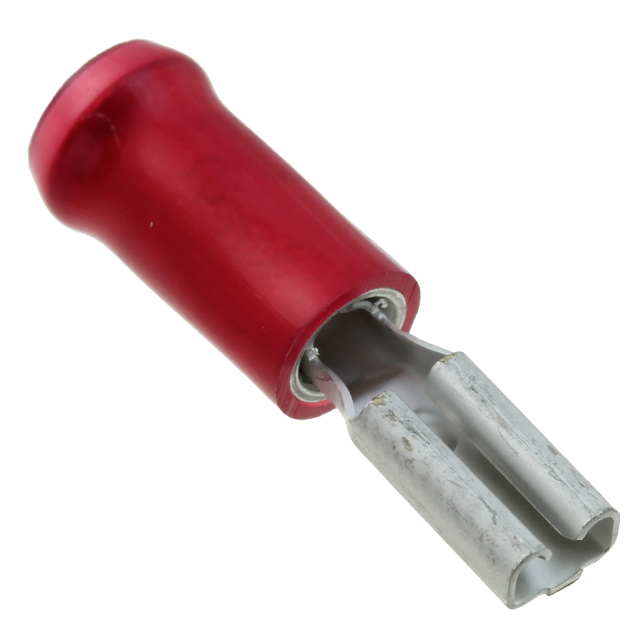

165566-1
Or copy the link below:
- Mfr.Part #
- 165566-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 16-22AWG 0.110
- Stock
- 5,784
- In Stock ：
- 5,784
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Terminal Type :
- Standard
- Width - Tab :
- 0.110 2.79mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Published :
- 1997
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Packaging :
- Bulk
- Insulated Wire Support :
- yes
- Mating Tab Width :
- 2.794mm
- Voltage - Rated AC :
- 300V
- Insulation Material :
- Nylon
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge (Min) :
- 16 AWG
- REACH SVHC :
- No SVHC
- Wire Gauge :
- 16-22 AWG
- Contact Material :
- Brass
- Factory Lead Time :
- 5 Weeks
- Lead Free :
- Not Applicable
- Wire Cross Section :
- 1.5 mm2
- HTS Code :
- 8536.90.40.00
- Sealable :
- No
- Termination :
- Crimp
- Series :
- Faston, PIDG
- Mount :
- Free Hanging
- Length - Overall :
- 0.780 19.81mm
- Wire/Cable Gauge :
- 15.5 AWG
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Orientation :
- Straight
- ELV :
- Compliant
- Wire Gauge (Max) :
- 22 AWG
- Tab Thickness :
- 0.032 0.81mm
- RoHS Status :
- RoHS Compliant
- Width :
- 800μm
- Insulation :
- Non-Mating End Insulated
- Color :
- Red
- Contact Plating :
- Tin
- Length - Tab :
- 0.248 6.30mm
- Length :
- 19.8mm
- Insulation Diameter :
- 0.140 (3.56mm)
- Datasheets
- 165566-1
165566-1 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
