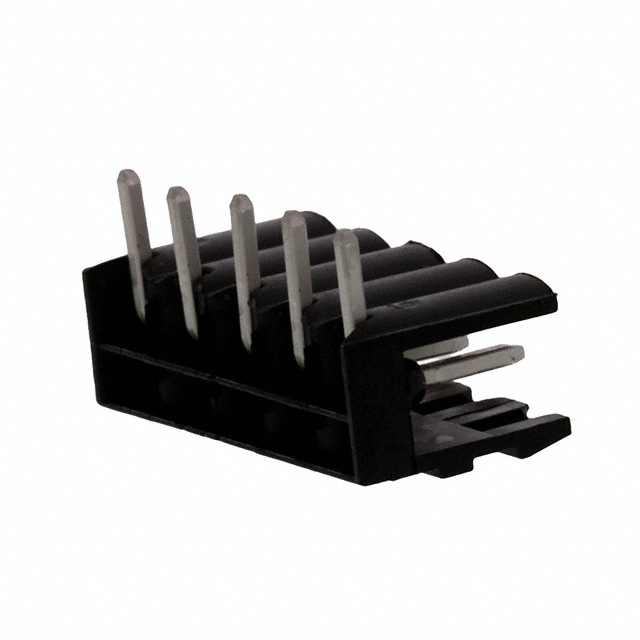

1626020000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Insulation Height :

0.330 8.38mm

Flammability Rating :

UL94 V-0

JESD-609 Code :

e3

Height :

8.4mm

Insulation Resistance :

1MOhm

UL Flammability Code :

94V-0

Termination Style :

Solder

Mount :

Through Hole

Header Orientation :

90°, Right Angle

Voltage - IEC :

400V

Contact Material :

COPPER ALLOY

DIN Conformance :

No

Gender :

Male

MIL Conformance :

No

Radiation Hardening :

No

Published :

2002

Voltage - Rated :

300V

RoHS Status :

RoHS Compliant

Current Rating :

15A

Filter Feature :

No

Lead Free :

Lead Free

Operating Temperature :

-50°C~100°C

Type :

Header, Male Pins, Shrouded (2 Side)

Number of Positions Per Level :

5

Width :

12mm

Contact Tail Length :

0.177 4.50mm

Material Flammability Rating :

UL94 V-0

Current - IEC :

18A

Factory Lead Time :

14 Weeks

Current :

10A

Total Number of Contacts :

5

Packaging :

Bulk

Contact Mating Finish :

Tin

REACH SVHC :

Unknown

Housing Material :

Polybutylene Terephthalate (PBT)

Number of Rows :

1

Mounting Type :

Through Hole

Length :

25mm

Ingress Protection :

IP20

Series :

Omnimate SL

Number of Levels :

1

Connector Type :

PCB, Terminal Block

IEC Conformance :

No

Mixed Contacts :

No

Color :

Black

Pbfree Code :

yes

Voltage :

300V

Option :

GENERAL PURPOSE

Pitch :

0.197 5.00mm
