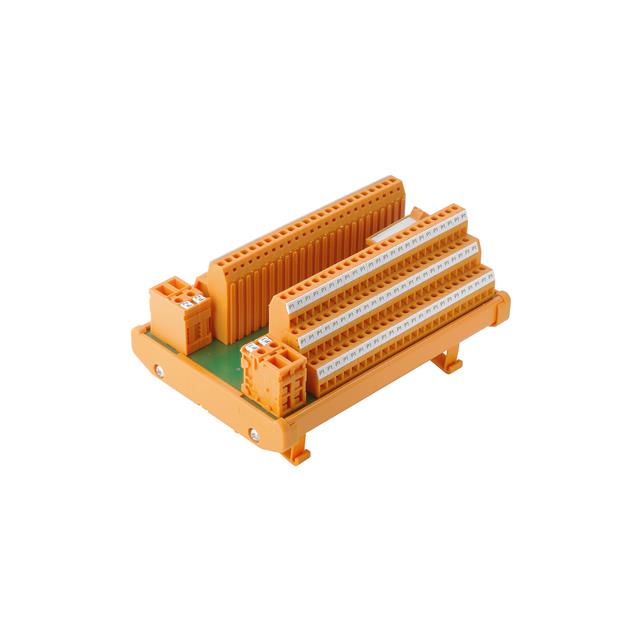

1626000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Gender :

Male

Number of Rows :

1

Insulation Height :

0.330 8.38mm

Number of Positions Per Level :

3

Current - IEC :

18A

Series :

Omnimate SL

JESD-609 Code :

e3

Height :

8.4mm

MIL Conformance :

No

Published :

2002

Lead Free :

Lead Free

Factory Lead Time :

14 Weeks

Voltage :

300V

Pbfree Code :

yes

UL Flammability Code :

94V-0

Contact Material :

COPPER ALLOY

Contact Mating Finish :

Tin

Filter Feature :

No

Current :

10A

RoHS Status :

RoHS Compliant

IEC Conformance :

No

Number of Levels :

1

Width :

12mm

Current Rating :

15A

Mount :

Through Hole

Mixed Contacts :

No

Radiation Hardening :

No

Option :

GENERAL PURPOSE

Insulation Resistance :

1MOhm

Header Orientation :

90°, Right Angle

Material Flammability Rating :

UL94 V-0

Voltage - UL :

300V

Packaging :

Bulk

Ingress Protection :

IP20

Flammability Rating :

UL94 V-0

Contact Tail Length :

0.177 4.50mm

Mounting Type :

Through Hole

Pitch :

0.197 5.00mm

DIN Conformance :

No

Type :

Header, Male Pins, Shrouded (2 Side)

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage - IEC :

400V

Operating Temperature :

-50°C~100°C

Total Number of Contacts :

3

Color :

Black

Length :

15mm

Termination Style :

Solder
