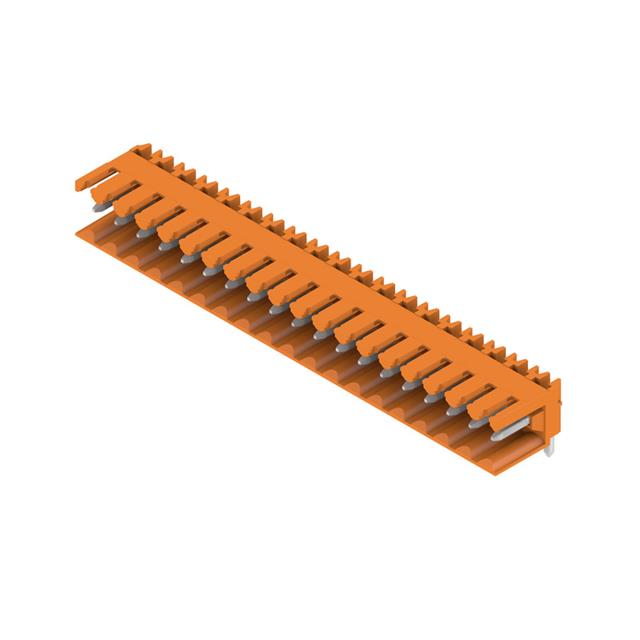

1619010000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Ingress Protection :

IP10

Height :

11.1mm

Number of Rows :

1

Hole Diameter :

1.3 mm

Lead Free :

Lead Free

Operating Temperature :

-50°C~100°C

Header Orientation :

90°, Right Angle

Insulation Resistance :

1MOhm

Series :

Omnimate SL

Current Rating :

14.5A

Current :

10A

DIN Conformance :

No

Mounting Type :

Through Hole

Termination Style :

Solder

Total Number of Contacts :

19

Number of Poles :

19

Published :

2008

Number of Levels :

1

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Pitch :

0.138 3.50mm

Filter Feature :

No

Width :

7.5mm

Factory Lead Time :

12 Weeks

Approval Agency :

CSA, UR

Color :

Orange

UL Flammability Code :

94V-0

Type :

Header, Male Pins, Shrouded (2 Side)

Voltage :

300V

Voltage - IEC :

320V

Option :

GENERAL PURPOSE

JESD-609 Code :

e3

Mount :

Through Hole

Contact Mating Finish :

Tin

Mixed Contacts :

No

Current - IEC :

17A

Packaging :

Bulk

IEC Conformance :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Insulation Height :

0.295 7.50mm

Pbfree Code :

yes

Voltage - Rated :

300V

Material Flammability Rating :

UL94 V-0

Radiation Hardening :

No

Contact Tail Length :

0.126 3.20mm

Contact Material :

COPPER ALLOY

Flammability Rating :

UL94 V-0
