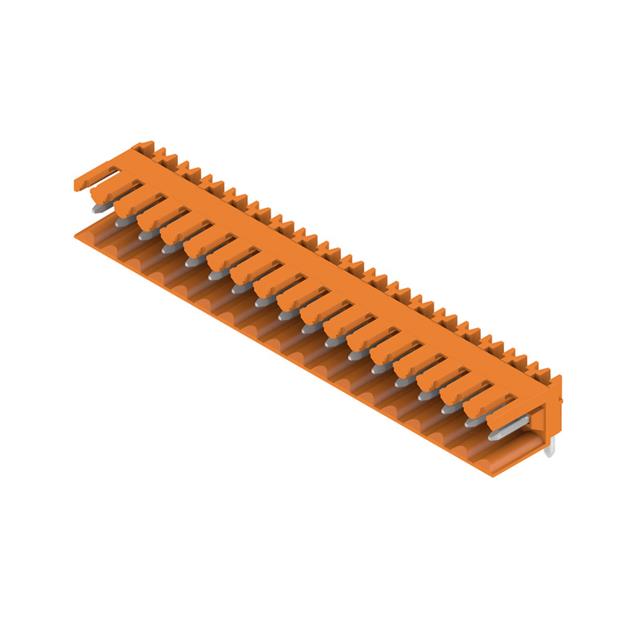

1619000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Number of Poles :

18

Type :

Header, Male Pins, Shrouded (2 Side)

Total Number of Contacts :

18

DIN Conformance :

No

JESD-609 Code :

e3

Insulation Height :

0.295 7.50mm

Contact Material :

COPPER ALLOY

Lead Free :

Lead Free

Number of Levels :

1

Hole Diameter :

1.3 mm

Option :

GENERAL PURPOSE

Width :

7.5mm

Approval Agency :

CSA, UR

Filter Feature :

No

Ingress Protection :

IP10

Radiation Hardening :

No

MIL Conformance :

No

Voltage :

300V

Header Orientation :

90°, Right Angle

Mount :

Through Hole

Voltage - IEC :

320V

Color :

Orange

Insulation Resistance :

1MOhm

Packaging :

Bulk

Pbfree Code :

yes

Published :

2008

Mounting Type :

Through Hole

Series :

Omnimate SL

Termination Style :

Solder

Voltage - Rated :

300V

Pitch :

0.138 3.50mm

Current Rating :

14.5A

Current - IEC :

17A

Operating Temperature :

-50°C~100°C

Contact Mating Finish :

Tin

Factory Lead Time :

12 Weeks

Flammability Rating :

UL94 V-0

Mixed Contacts :

No

UL Flammability Code :

94V-0

Housing Material :

Polybutylene Terephthalate (PBT)

Number of Rows :

1

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Height :

11.1mm

IEC Conformance :

No

Current :

10A

Contact Tail Length :

0.126 3.20mm
