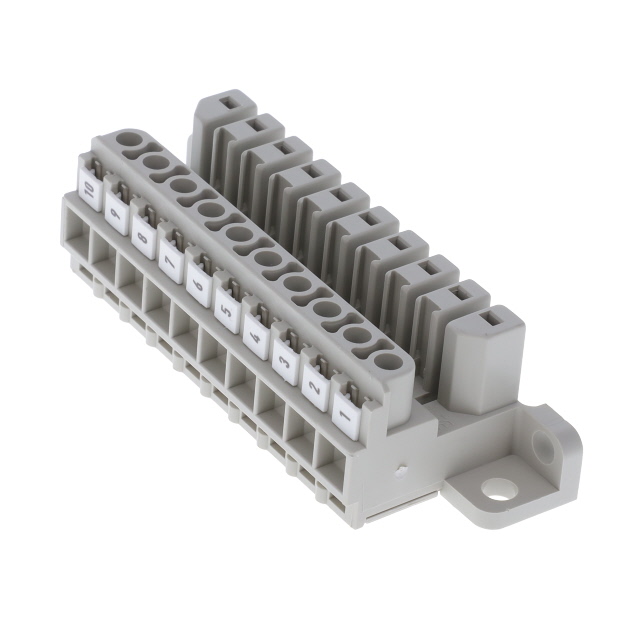

1613010000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Stripping Length :

9mm

Number of Levels :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-50°C~100°C

Type :

Plug, Blade Sockets

Series :

Powermate STV

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

Contact Material :

COPPER ALLOY

Pitch :

0.276 7.00mm

Voltage - IEC :

1kV

Wire Gauge or Range - AWG :

12-22 AWG

IEC Conformance :

No

Mount :

Panel

Packaging :

Bulk

Gender :

FEMALE

Shell Material :

Polyamide

Termination :

Screw

Voltage - UL :

600V

Radiation Hardening :

No

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

JESD-609 Code :

e4

DIN Conformance :

No

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Insulation Height :

0.945 24.00mm

Screw Size :

M3

Factory Lead Time :

12 Weeks

Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Housing Color :

Grey

MIL Conformance :

No

Current Rating :

32A

Contact Mating Finish :

Silver

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Wire Gauge or Range - mm² :

0.5-4mm2

Color :

Gray

RoHS Status :

RoHS Compliant

Plug Wire Entry :

90°

Number of Contacts :

10

Feature :

Mating Flange

Current - UL :

25A

Pbfree Code :

yes

Housing Material :

Thermoplastic, Wemid

Ingress Protection :

IP20

Option :

GENERAL PURPOSE

Empty Shell :

No

Voltage - Rated :

300V
