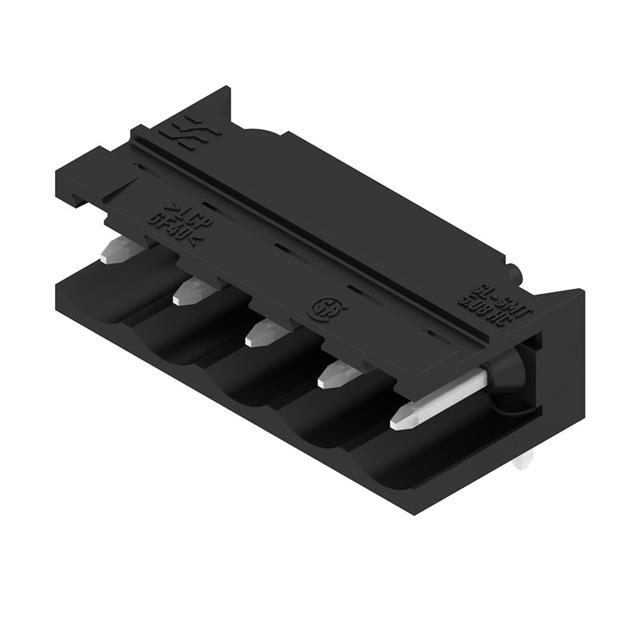

1613000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - mm² :

0.5-4mm2

Mounting Type :

Free Hanging (In-Line)

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Material Flammability Rating :

UL94 V-0

Housing Color :

Grey

Screw Size :

M3

Contact Mating Finish :

Silver

Contact Material :

COPPER ALLOY

Shell Material :

Polyamide

Housing Material :

Thermoplastic, Wemid

Radiation Hardening :

No

Pitch :

0.276 7.00mm

Mount :

Panel

Pbfree Code :

yes

Ingress Protection :

IP20

Flammability Rating :

UL94 V-0

Termination :

Screw

Operating Temperature :

-50°C~100°C

Mixed Contacts :

No

MIL Conformance :

No

Voltage - IEC :

1kV

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Empty Shell :

No

Type :

Plug, Blade Sockets

Factory Lead Time :

11 Weeks

Feature :

Mating Flange

Color :

Gray

Current - UL :

25A

Voltage - UL :

600V

IEC Conformance :

No

Number of Contacts :

9

Option :

GENERAL PURPOSE

DIN Conformance :

No

Voltage - Rated :

300V

Wire Gauge or Range - AWG :

12-22 AWG

Gender :

FEMALE

JESD-609 Code :

e4

Packaging :

Bulk

Number of Levels :

1

Insulation Height :

0.945 24.00mm

Current Rating :

32A

RoHS Status :

RoHS Compliant

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Series :

Powermate STV

Filter Feature :

No

Plug Wire Entry :

90°

Stripping Length :

9mm
