Mfr.Part #
1543223
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
CONN PLUG MALE 4POS GOLD IDC
Stock
53
In Stock :
53

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Circular Connector Assemblies
Shielding :
Shielded
Backshell Material, Plating :
Zinc Die Cast, Nickel
Shell Finish :
Nickel
Packaging :
Bulk
Termination :
IDC
Number of Ports :
1
Current Rating :
1.75A
Insert Material :
Polyamide (PA66), Nylon 6/6
Lead Free :
Lead Free
Voltage - Rated :
48VAC 60VDC
MIL Conformance :
No
Housing Material :
Zinc
Ingress Protection :
IP67 - Dust Tight, Waterproof
Total Number of Contacts :
8
Thread Size :
M12
Contact Finish - Mating :
Gold
Contact Material :
COPPER TIN
Feature :
Backshell
Fastening Type :
Threaded
Option :
GENERAL PURPOSE
Connector Type :
Plug, Male Pins
Factory Lead Time :
4 Weeks
Wire/Cable Type :
Straight
Operating Temperature :
-40°C~85°C
Contact Gender :
Male
Mixed Contacts :
No
Reach Compliance Code :
not_compliant
Mounting Type :
Free Hanging (In-Line)
Max Current Rating :
1.75A
Ratings :
Dust Tight, IP67, Waterproof
Shell Material :
Brass
Shell Size - Insert :
M12-4
DIN Conformance :
No
RoHS Status :
RoHS Compliant
Material Flammability Rating :
UL94 V-0
Cable Opening :
0.157 ~ 0.315 (4.00mm ~ 8.00mm)
Number of Positions :
4
JESD-609 Code :
e4
Filter Feature :
No
Weight :
44.900003g
Series :
SACC
IEC Conformance :
No
Color :
Silver
Empty Shell :
No
Published :
2008
Mount :
Cable, Free Hanging
Orientation :
D
Pbfree Code :
yes
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
1543223
Introducing Circular Connector Assemblies Phoenix Contact 1543223 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Free Hanging (In-Line), 1543223 pinout, 1543223 datasheet PDF, 1543223 amp .Beyond Circular Connector Assemblies Phoenix Contact 1543223 ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

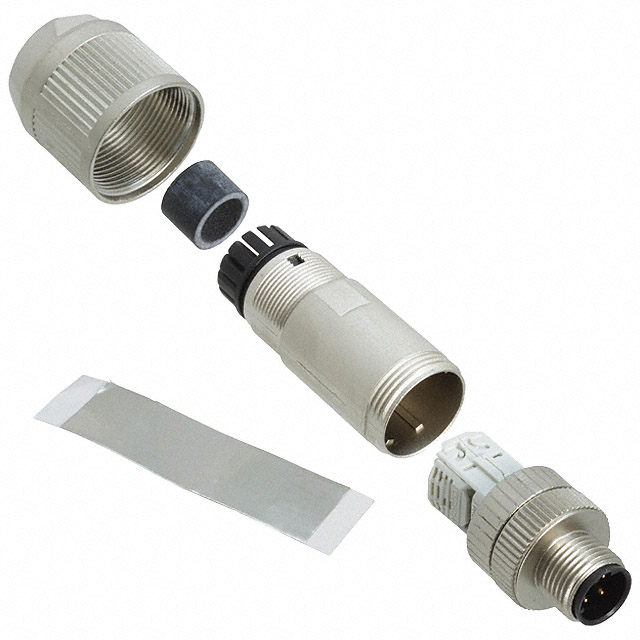

Phoenix Contact 1543223


Plug, Male Pins Brass Free Hanging (In-Line) 4 Positions IDC Gold Nickel Bulk D Threaded

1543223 Overview


A Plug, Male Pins package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the SACC Series of products.A number of features make it more powerful because of its Backshell feature.Cable, Free Hanging mounts the part.There is no operating temperature for the device.

1543223 Features


SACC series


1543223 Applications


There are a lot of Phoenix Contact
1543223 Circular Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
