1543045

Share

Or copy the link below:

Mfr.Part #
1543045
Manufacturer
Phoenix Contact
Package / Case
Metal
Datasheet
Download
Description
CONN RCPT FMALE 5P SCREW
Stock
17,866
In Stock :
17,866

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Circular Connector Assemblies
Max Current Rating :
4A
Filter Feature :
No
Connector Type :
Receptacle, Female Sockets
Number of Positions :
5
Mounting Type :
Free Hanging (In-Line)
RoHS Status :
RoHS Compliant
Thread Size :
M12
Color :
Black, Silver
Voltage - Rated DC :
60V
Gender :
Receptacle
Ingress Protection :
IP67 - Dust Tight, Waterproof
Published :
2009
Housing Material :
PBT
Fastening Type :
Push-Twist
Termination :
Screw
Total Number of Contacts :
5
Shell Size - Insert :
M12-5
MIL Conformance :
No
Weight :
28.349523g
Packaging :
Bulk
Backshell Type :
Solid
Operating Temperature :
-40°C~85°C
Orientation :
A
Backshell Material, Plating :
Polybutylene Terephthalate (PBT)
IEC Conformance :
No
Package / Case :
Metal
Mixed Contacts :
No
Ratings :
Dust Tight, IP67, Waterproof
DIN Conformance :
No
Contact Gender :
FEMALE
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Series :
SACC
Shell Finish :
Nickel
Shell Material :
Brass
Feature :
Backshell, Coupling Nut
Pbfree Code :
yes
Number of Ports :
1
Mount :
Cable, Free Hanging
Empty Shell :
No
REACH SVHC :
Unknown
Factory Lead Time :
4 Weeks
Contact Material :
Copper Zinc
Insert Material :
Polyamide (PA), Nylon
Cable Opening :
0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Material Flammability Rating :
UL94 HB
Current Rating :
4A
Lead Free :
Lead Free
Contact Finish - Mating :
COPPER ALLOY
Voltage - Rated :
48VAC 60VDC
Datasheets
1543045
Introducing Circular Connector Assemblies Phoenix Contact 1543045 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-40°C~85°C, Package / Case:Metal, 1543045 pinout, 1543045 datasheet PDF, 1543045 amp .Beyond Circular Connector Assemblies Phoenix Contact 1543045 ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

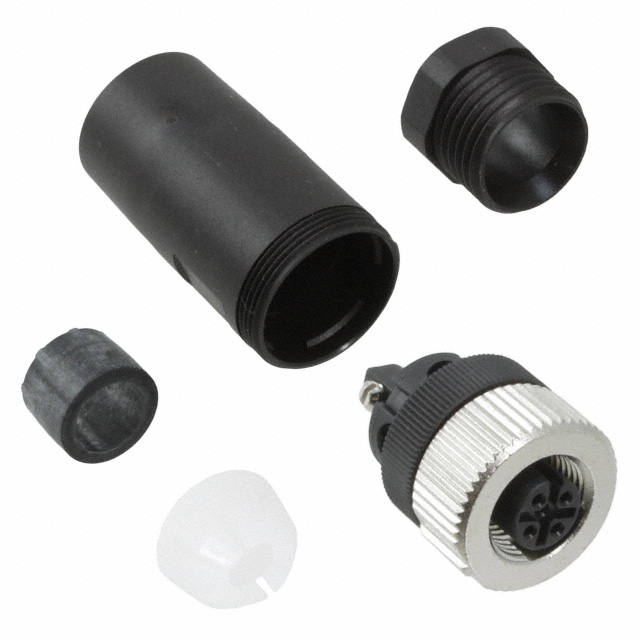

Phoenix Contact 1543045


Receptacle, Female Sockets Brass Free Hanging (In-Line) 5 Positions Screw Copper Alloy Nickel Bulk A Push-Twist

1543045 Overview


Packaging is Receptacle, Female Sockets.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SACC Series, it can be found in this category.An enclosed device is enclosed in the packaging with the Metal.With its Backshell, Coupling Nut feature, it is more powerful in many ways.In this case, Cable, Free Hanging mounts the part.The device is operating at -40°C~85°C Operating Temperature.

1543045 Features


SACC series


1543045 Applications


There are a lot of Phoenix Contact
1543045 Circular Connectors applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
