Mfr.Part #
147105-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 6POS 0.1 GOLD SMD
Stock
1,087
In Stock :
1,087

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
JESD-609 Code :
e0
MIL Conformance :
No
Option :
GENERAL PURPOSE
PCB Thickness :
2.4mm
Mixed Contacts :
No
Termination :
Solder
Operating Temperature :
-65°C~125°C
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Contact Finish Thickness - Post :
150.0μin 3.81μm
Number of Positions :
6
Contact Finish - Post :
Tin-Lead
Additional Feature :
TAPE AND REEL PACKAGING
Gender :
Receptacle
Mating Contact Pitch :
0.1 inch
Contact Finish Thickness - Mating :
30.0μin 0.76μm
Housing Material :
Polyester
High Temperature Compatible :
yes
Row Spacing - Mating :
0.100 (2.54mm)
Voltage - Rated AC :
250V
Housing Color :
Black
Insulation Resistance :
5GOhm
Feature :
Pick and Place
Orientation :
Vertical
Flammability Rating :
UL94 V-0
Dielectric Withstanding Voltage :
750VAC V
Number of Conductors :
ONE
Sealable :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Approval Agency :
CSA
Contact Current Rating :
2A
Max Voltage Rating (AC) :
250V
Number of Positions Loaded :
All
Current Rating :
3A
IEC Conformance :
No
RoHS Status :
Non-RoHS Compliant
Series :
AMPMODU Mod IV
Body Breadth :
0.198 inch
DIN Conformance :
No
Pitch - Mating :
0.100 2.54mm
Lead Length :
1.0414mm
Withdrawl Force-Min :
.417 N
Style :
Board to Board or Cable
Height :
6.731mm
Total Number of Contacts :
6
PCB Mount Retention :
Without
Contact Type :
Female Socket
Factory Lead Time :
16 Weeks
Pbfree Code :
No
Packaging :
Tape and Reel (TR)
Insulation Height :
0.265 6.73mm
Contact Shape :
Square
Insulation Material :
Polyester, Glass Filled
ELV :
Non-Compliant
Length :
7.62mm
Reliability :
COMMERCIAL
Contact Finish - Mating :
Gold
Connector Type :
Receptacle, Bottom or Top Entry
Lead Free :
Contains Lead
Mount :
Surface Mount
Mounting Type :
Surface Mount
Number Of PCB Rows :
2
Plating Thickness :
30μin
Contact Resistance :
12mOhm
PCB Contact Pattern :
RECTANGULAR
Operating Supply Voltage :
250V
Number of Rows :
2
Rated Current (Signal) :
3A
Depth :
5.03mm
Contact Material :
Phosphor Bronze
Fastening Type :
Push-Pull
Filter Feature :
No
Published :
2008
Datasheets
147105-3
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 147105-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-65°C~125°C, Mounting Type:Surface Mount, 147105-3 pinout, 147105-3 datasheet PDF, 147105-3 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 147105-3 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

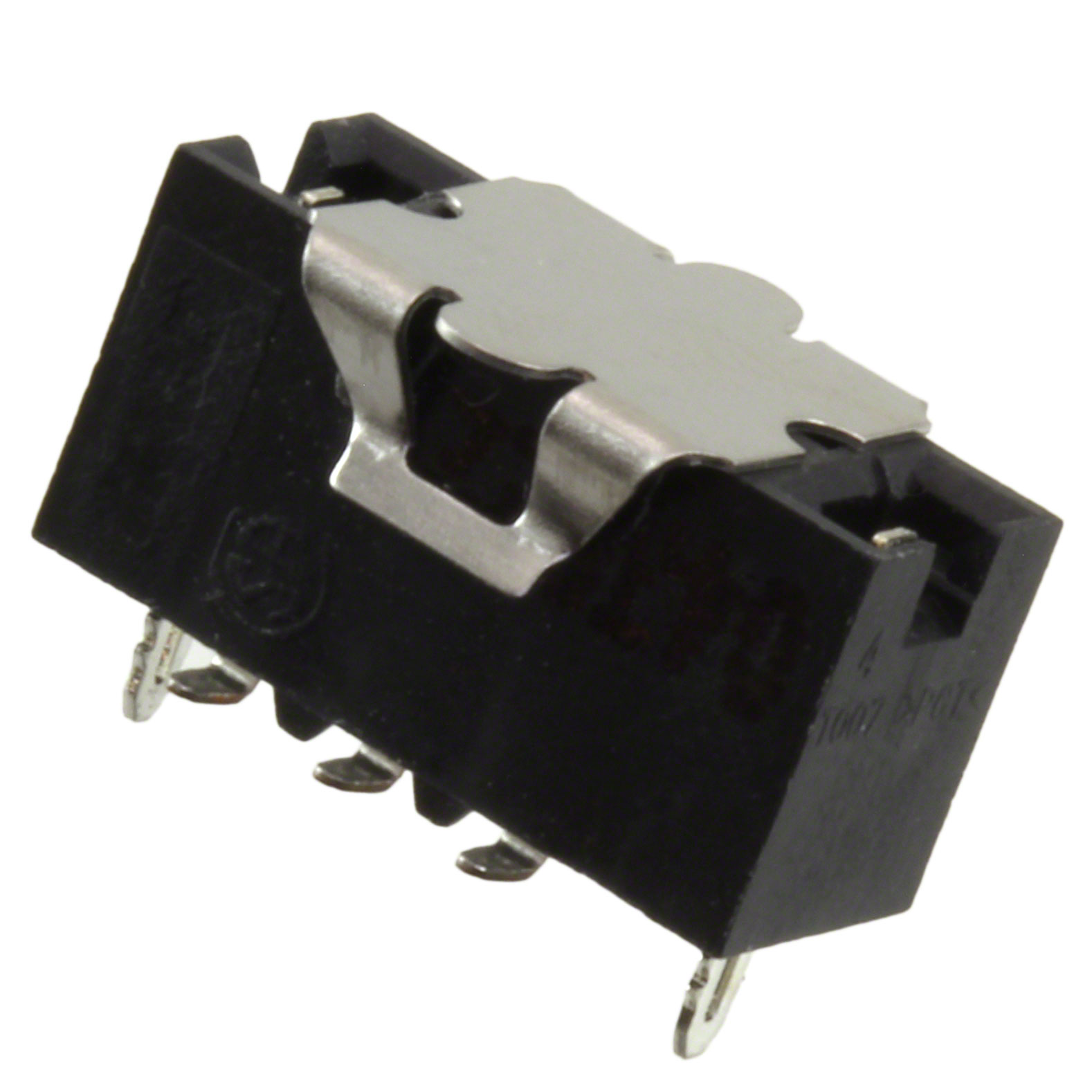

TE Connectivity AMP Connectors 147105-3


2 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Polyester, Glass Filled 6 Positions Female Socket

147105-3 Overview


It comes in Receptacle, Bottom or Top Entry packaging.The device's mounting type is Surface Mount.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the AMPMODU Mod IV Series of products.In addition, there are other features such as TAPE AND REEL PACKAGING, to mention only a few.Its Pick and Place feature renders it more powerful in many ways.The part is mounted by Surface Mount.This memory's operating supply voltage is 250V.The device runs in -65°C~125°C Operating Temperature.

147105-3 Features


AMPMODU Mod IV series


147105-3 Applications


There are a lot of TE Connectivity AMP Connectors
147105-3 Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
