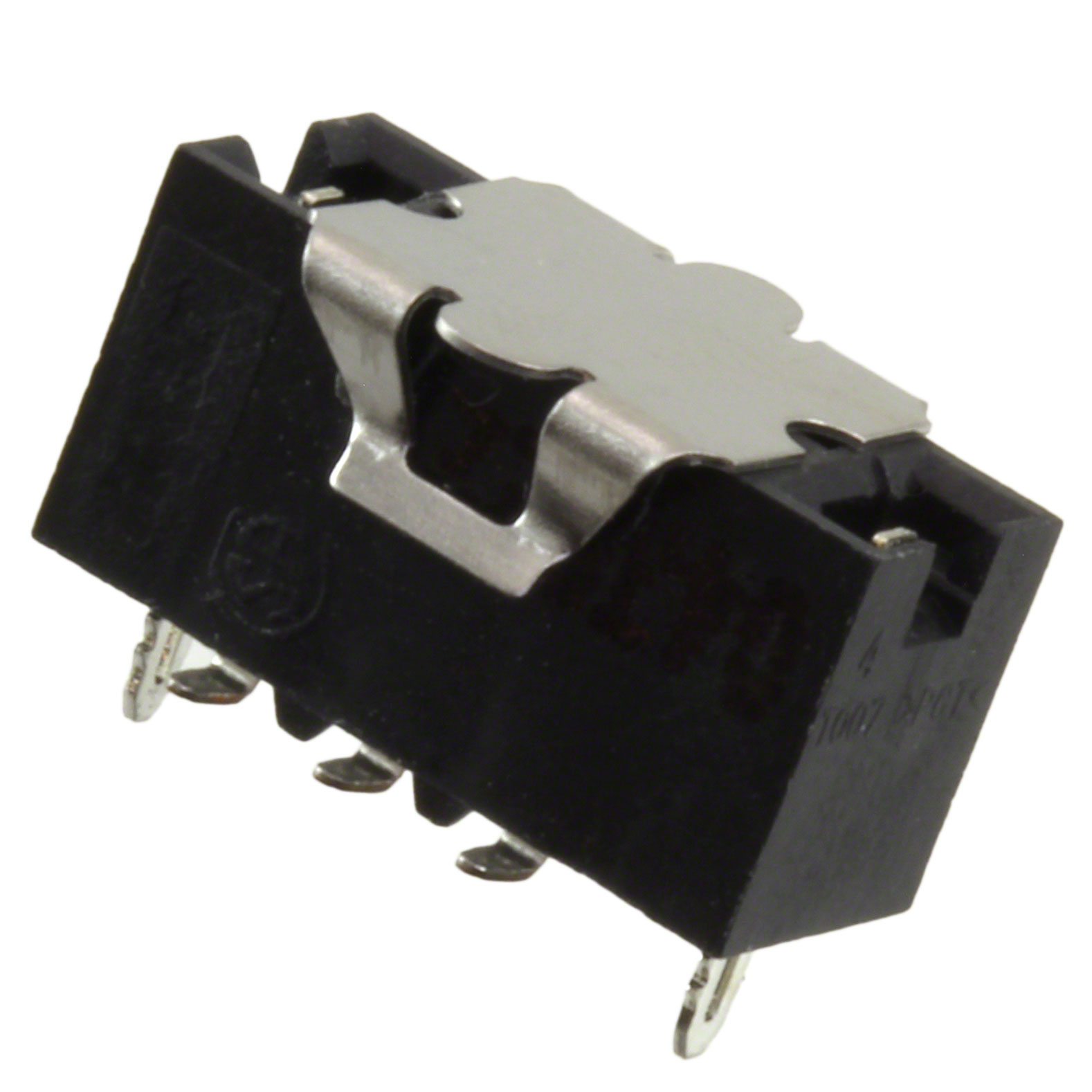

147102-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Stackable :

No

Gender :

Receptacle

Contact Finish Thickness - Post :

150.0μin 3.81μm

Termination :

Solder

Mating Contact Pitch :

0.1 inch

Published :

2009

Voltage - Rated AC :

250V

Insulation Material :

Polyester, Glass Filled

Contact Type :

Female Socket

Packaging :

Tube

Filter Feature :

No

Current Rating :

3A

ECCN Code :

EAR99

Mixed Contacts :

No

Total Number of Contacts :

6

Insulation Resistance :

5000000000Ohm

Pbfree Code :

No

Reference Standard :

UL, CSA

Number of Positions :

6

Dielectric Withstanding Voltage :

750VAC V

PCB Contact Pattern :

RECTANGULAR

Lead Free :

Contains Lead

Contact Shape :

Square

Number Of PCB Rows :

2

Operating Temperature :

-65°C~125°C

Housing Color :

Black

Contact Finish - Mating :

Gold

Number of Positions Loaded :

All

Number of Conductors :

ONE

Mount :

Surface Mount

Number of Rows :

2

Approval Agency :

CSA, UL

DIN Conformance :

No

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Post :

Tin-Lead

Housing Material :

Polymer

MIL Conformance :

No

Mounting Type :

Surface Mount

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Feature :

Board Lock, Pick and Place

RoHS Status :

Non-RoHS Compliant

Connector Type :

Receptacle, Bottom or Top Entry

Current Rating (Amps) :

2A

Orientation :

Vertical

Flammability Rating :

UL94 V-0

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Height :

0.265 6.73mm

High Temperature Compatible :

yes

Withdrawl Force-Min :

.417 N

Style :

Board to Board or Cable

Reliability :

COMMERCIAL

Series :

AMPMODU Mod IV

IEC Conformance :

No

Plating Thickness :

30μin

ELV :

Non-Compliant

Option :

GENERAL PURPOSE

Factory Lead Time :

11 Weeks

Fastening Type :

Push-Pull

Contact Material :

Phosphor Bronze
