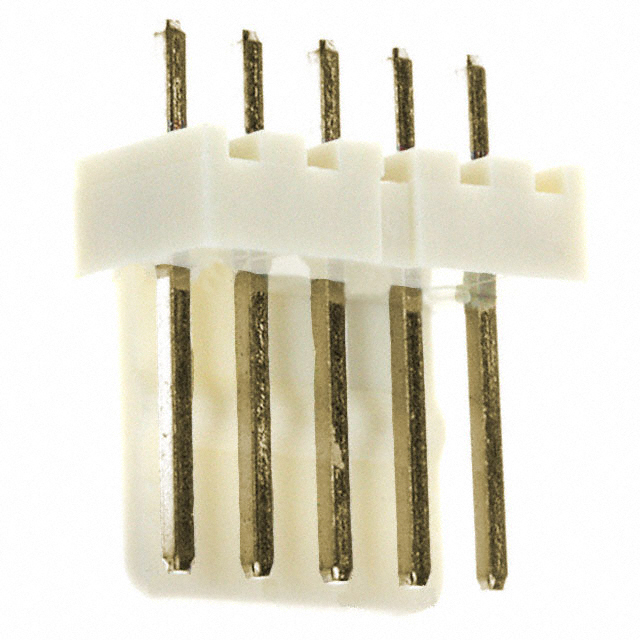

14191

Manufacturer :

Bulgin

Product Category :

Headers, Male Pins

Current Rating :

1A

Number of Poles :

5

Termination :

Solder

Mount :

Through Hole

Fastening Type :

Friction Lock

Lead Pitch :

2.54mm

Weight :

453.59237mg

Overall Contact Length :

0.560 14.22mm

Voltage - Rated AC :

30V

Contact Finish - Mating :

Gold

Voltage - Rated DC :

30V

Gender :

Male

Orientation :

Straight

Pbfree Code :

yes

Operating Temperature :

0°C~70°C

Insulation Color :

White

Depth :

6.35mm

Style :

Board to Cable/Wire

Published :

2003

Shrouding :

Shrouded - 1 Wall

REACH SVHC :

No SVHC

ECCN Code :

EAR99

MIL Conformance :

No

Mixed Contacts :

No

Height :

14.2mm

Packaging :

Bulk

DIN Conformance :

No

Total Number of Contacts :

5

Filter Feature :

No

JESD-609 Code :

e4

IEC Conformance :

No

Color :

Black, White

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Factory Lead Time :

20 Weeks

Insulation Material :

Polycarbonate

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole

Length :

12.7mm

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Rows :

1

Series :

Buccaneer®

Width :

12.7mm

Pitch - Mating :

0.100 2.54mm

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Contact Type :

Male Pin

Flammability Rating :

UL94 V-0

Connector Type :

Header

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0
