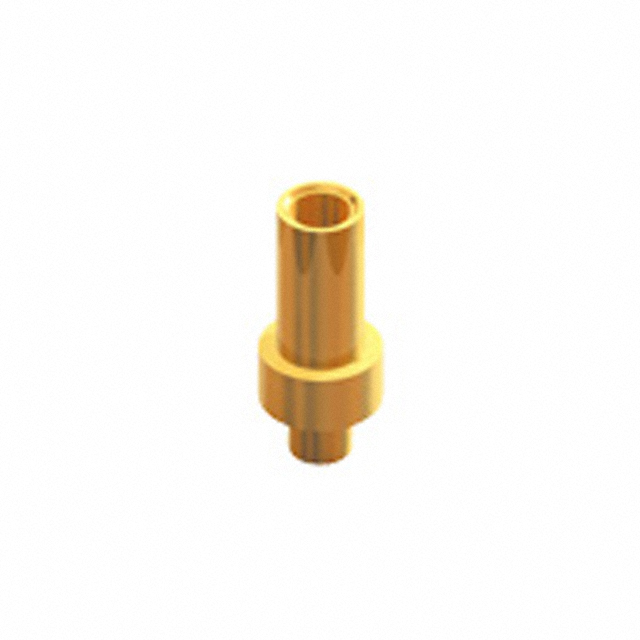

1419-1

Manufacturer :

Keystone Electronics Corp.

Product Category :

PC Pin Receptacles, Socket Connectors

JESD-609 Code :

e4

Insulation Color :

White

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

30.0μin 0.76μm

MIL Conformance :

No

Overall Contact Length :

0.560 14.22mm

Termination :

Solder

Contact Shape :

Square

Operating Temperature :

0°C~70°C

Option :

GENERAL PURPOSE

Length :

12.7mm

Pbfree Code :

yes

Gender :

Male

Packaging :

Bulk

Factory Lead Time :

20 Weeks

Contact Finish - Mating :

Gold

Current Rating :

1A

Depth :

6.35mm

Color :

Black, White

Orientation :

Straight

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

Not Applicable

Filter Feature :

No

Voltage - Rated AC :

30V

UL Flammability Code :

94V-0

Width :

12.7mm

Series :

Buccaneer®

Flammability Rating :

UL94 V-0

Total Number of Contacts :

5

DIN Conformance :

No

Connector Type :

Header

IEC Conformance :

No

Insulation Material :

Polycarbonate

Published :

2003

Height :

14.2mm

Mounting Type :

Through Hole

Contact Material :

COPPER ALLOY

Pitch - Mating :

0.100 2.54mm

Mount :

Through Hole

Lead Pitch :

2.54mm

Voltage - Rated DC :

30V

Mixed Contacts :

No

Number of Poles :

5

REACH SVHC :

No SVHC

Shrouding :

Shrouded - 1 Wall

Fastening Type :

Friction Lock

Contact Type :

Male Pin

Number of Positions Loaded :

All

Weight :

453.59237mg
