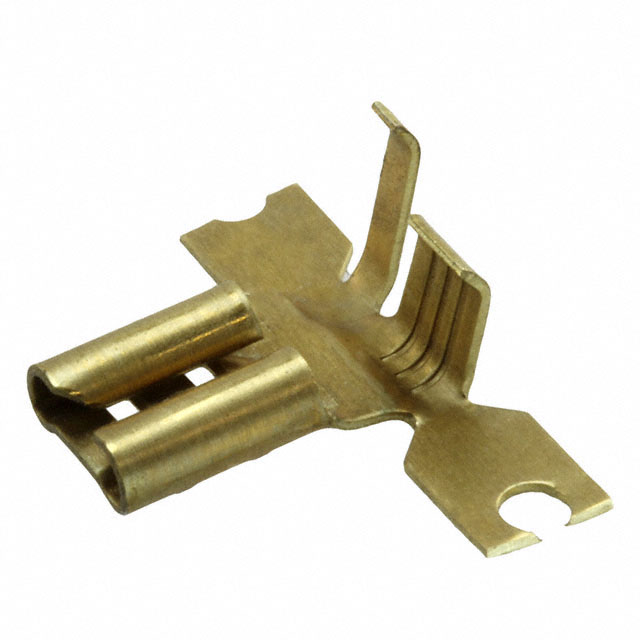

1217009-1
Or copy the link below:
- Mfr.Part #
- 1217009-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 16-20AWG 0.187
- Stock
- 32,458
- In Stock ：
- 32,458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Published :
- 2007
- Gender :
- FEMALE
- Wire Gauge (Max) :
- 20 AWG
- Sealable :
- No
- Insulation Diameter :
- 0.090 ~ 0.130 (2.29mm ~ 3.30mm)
- Tab Thickness :
- 0.020 0.51mm
- Length :
- 13.2588mm
- Wire Gauge (Min) :
- 16 AWG
- Factory Lead Time :
- 7 Weeks
- Insulated Wire Support :
- yes
- Wire Gauge :
- 16-20 AWG
- Wire/Cable Type :
- Discrete
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Termination :
- Crimp
- HTS Code :
- 8536.90.40.00
- Mount :
- Free Hanging
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Series :
- Faston
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Length - Tab :
- 0.250 6.35mm
- Packaging :
- Cut Tape (CT)
- Lead Free :
- Not Applicable
- ELV :
- Compliant
- Terminal Type :
- Angled - 90°, Flag
- Mating Tab Width :
- 4.75mm
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Contact Material :
- Brass
- Pbfree Code :
- yes
- Insulation :
- Non-Insulated
- Plating :
- Unplated
- Width - Tab :
- 0.187 4.75mm
- Min Operating Temperature :
- -40°C
- RoHS Status :
- RoHS Compliant
- Datasheets
- 1217009-1
1217009-1 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
