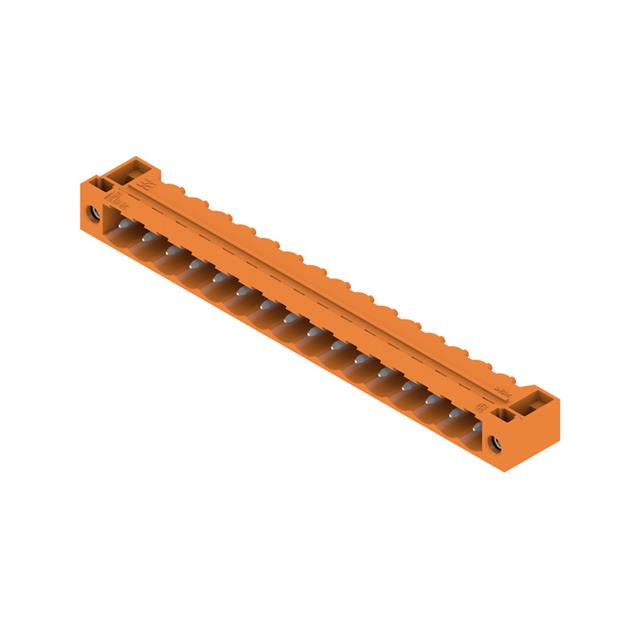

1149080000
Or copy the link below:
- Mfr.Part #
- 1149080000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 16POS 5.08MM
- Stock
- 19,665
- In Stock ：
- 19,665
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Current - UL :
- 18.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage :
- 300V
- Packaging :
- Bulk
- Approval Agency :
- cURus
- Feature :
- Mating and Mounting Flange
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 1 mm
- Voltage - Rated :
- 300V
- Contact Mating Finish :
- Tin
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Termination Style :
- Solder
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 14 Weeks
- Voltage - IEC :
- 400V
- Header Orientation :
- 90°, Right Angle
- Current Rating :
- 24A
- Color :
- Orange
- Pitch :
- 0.200 5.08mm
- RoHS Status :
- RoHS Compliant
- Series :
- Omnimate SL
- Insulation Material :
- Nylon
- Number of Positions Per Level :
- 16
- Insulation Height :
- 0.335 8.51mm
- Number of Positions :
- 16
- Contact Tail Length :
- 0.126 3.20mm
- Number of Levels :
- 1
- Contact Material :
- COPPER ALLOY
- Mount :
- Through Hole
- Current :
- 15A
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Operating Temperature :
- -50°C~100°C
- Mounting Type :
- Through Hole
- Datasheets
- 1149080000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1149080000 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate SL Series.There are a number of advantages to its Mating and Mounting Flange feature.Part Through Hole is mounted to the part.As a result, the device runs at -50°C~100°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
1149080000 Features
Omnimate SL series
1149080000 Applications
There are a lot of Weidmüller
1149080000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
