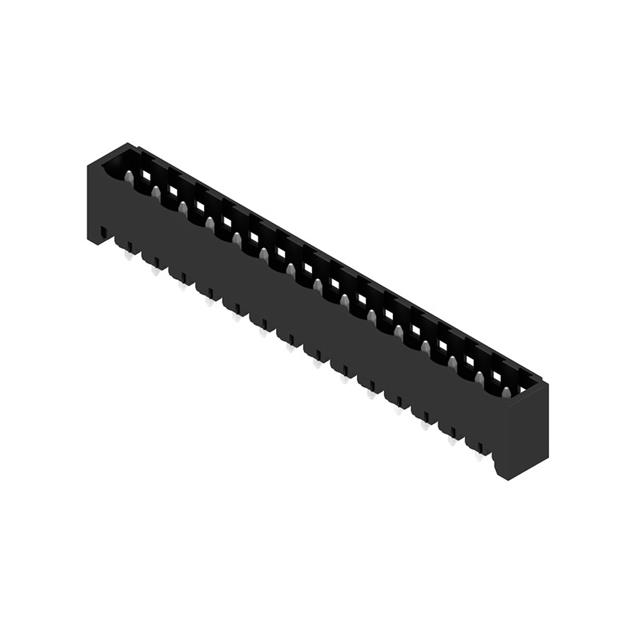

1149070000
Or copy the link below:
- Mfr.Part #
- 1149070000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 15POS VERT 5.08MM
- Stock
- 41,108
- In Stock ：
- 41,108
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Voltage - UL :
- 300V
- RoHS Status :
- RoHS Compliant
- Series :
- Omnimate SL
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Through Hole
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -50°C~100°C
- Current - UL :
- 18.5A
- Insulation Height :
- 0.472 12.00mm
- Voltage - IEC :
- 400V
- Contact Tail Length :
- 0.126 3.20mm
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 15
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Termination Style :
- Solder
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Header Orientation :
- Vertical
- Pitch :
- 0.200 5.08mm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Packaging :
- Bulk
- Number of Levels :
- 1
- Flammability Rating :
- UL94 V-0
- Contact Mating Finish :
- Tin
- Current - IEC :
- 24A
- Datasheets
- 1149070000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1149070000 Overview
Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Omnimate SL Series.It operates at an operating temperature of -50°C~100°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
1149070000 Features
Omnimate SL series
1149070000 Applications
There are a lot of Weidmüller
1149070000 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
