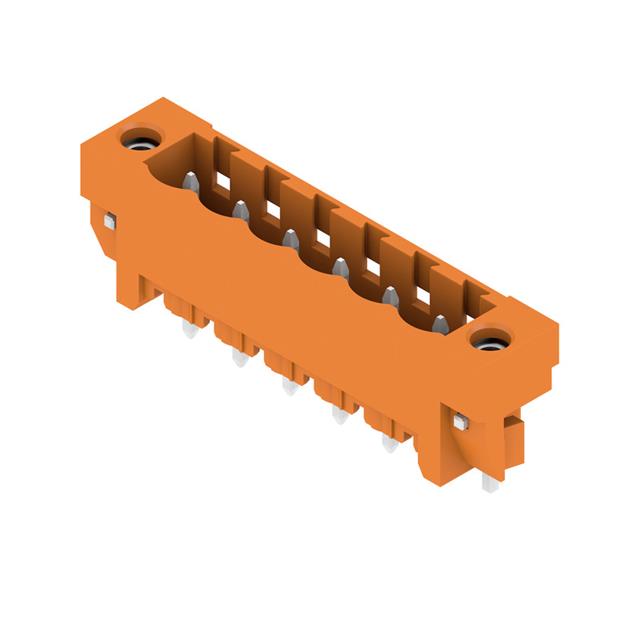

1148020000
Or copy the link below:
- Mfr.Part #
- 1148020000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS VERT 5.08MM
- Stock
- 45,079
- In Stock ：
- 45,079
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Gender :
- Male
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -50°C~100°C
- Contact Mating Finish :
- Tin
- Number of Levels :
- 1
- Current Rating :
- 24A
- Published :
- 2015
- Series :
- Omnimate SL
- Factory Lead Time :
- 14 Weeks
- Voltage - IEC :
- 400V
- Current - UL :
- 18.5A
- Header Orientation :
- Vertical
- REACH SVHC :
- No SVHC
- Hole Diameter :
- 1.3 mm
- Termination Style :
- Solder
- Contact Material :
- COPPER ALLOY
- Pitch :
- 0.200 5.08mm
- Approval Agency :
- cURus
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Orange
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 6
- Contact Tail Length :
- 0.126 3.20mm
- Mount :
- Through Hole
- Insulation Material :
- Nylon
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Feature :
- Mating Flange, Solder Retention
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Insulation Height :
- 0.472 12.00mm
- Datasheets
- 1148020000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1148020000 Overview
Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the Omnimate SL Series.Many aspects of its Mating Flange, Solder Retention feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -50°C~100°C Operating Temperature.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
1148020000 Features
Omnimate SL series
1148020000 Applications
There are a lot of Weidmüller
1148020000 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
