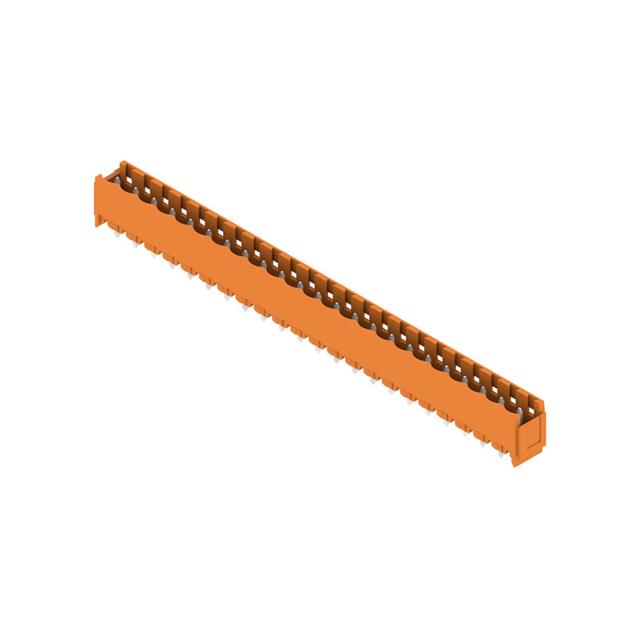

1148010000
Or copy the link below:
- Mfr.Part #
- 1148010000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 23POS VERT 5.08MM
- Stock
- 12,891
- In Stock ：
- 12,891
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Hole Diameter :
- 1.3 mm
- Current - UL :
- 18.5A
- Contact Material :
- COPPER ALLOY
- Insulation Height :
- 0.472 12.00mm
- Contact Tail Length :
- 0.126 3.20mm
- Color :
- Orange
- Current Rating :
- 24A
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Voltage - UL :
- 300V
- RoHS Status :
- RoHS Compliant
- Header Orientation :
- Vertical
- Number of Positions :
- 23
- Series :
- Omnimate SL
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Approval Agency :
- cURus
- Pitch :
- 0.200 5.08mm
- Number of Levels :
- 1
- Contact Mating Finish :
- Tin
- Mounting Type :
- Through Hole
- Termination Style :
- Solder
- Feature :
- Interlocking (Side)
- Voltage - IEC :
- 400V
- Factory Lead Time :
- 14 Weeks
- Insulation Material :
- Nylon
- Operating Temperature :
- -50°C~100°C
- Voltage - Rated :
- 300V
- Datasheets
- 1148010000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1148010000 Overview
Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the Omnimate SL Series.This feature renders it more powerful in a number of ways because of its Interlocking (Side) feature.Device runs in -50°C~100°C operating temperature.Many Header, Male Pins, Shrouded (4 Side) products share the same benefits as this part.
1148010000 Features
Omnimate SL series
1148010000 Applications
There are a lot of Weidmüller
1148010000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
