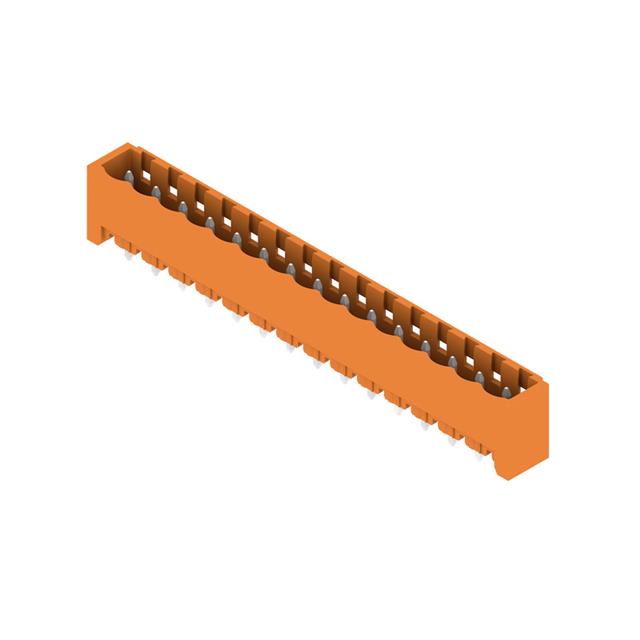

1147020000
Or copy the link below:
- Mfr.Part #
- 1147020000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 15POS VERT 5.08MM
- Stock
- 46,579
- In Stock ：
- 46,579
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Insulation Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Contact Tail Length :
- 0.126 3.20mm
- Number of Levels :
- 1
- Contact Material :
- COPPER ALLOY
- Hole Diameter :
- 1 mm
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Series :
- Omnimate SL
- Insulation Height :
- 0.472 12.00mm
- Approval Agency :
- cURus
- Contact Mating Finish :
- Tin
- Color :
- Orange
- Termination Style :
- Solder
- Operating Temperature :
- -50°C~100°C
- Pitch :
- 0.200 5.08mm
- Factory Lead Time :
- 14 Weeks
- Current - UL :
- 18.5A
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Voltage - UL :
- 300V
- Current Rating :
- 24A
- Header Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Voltage - Rated :
- 300V
- Number of Positions :
- 15
- Voltage - IEC :
- 400V
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 1147020000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1147020000 Overview
There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate SL Series.In this case, the device operates at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
1147020000 Features
Omnimate SL series
1147020000 Applications
There are a lot of Weidmüller
1147020000 Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
