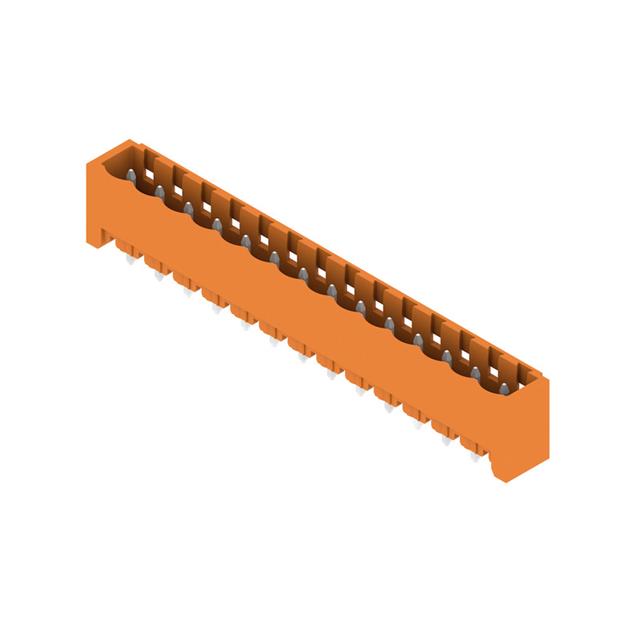

1147000000
Or copy the link below:
- Mfr.Part #
- 1147000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 14POS VERT 5.08MM
- Stock
- 27,640
- In Stock ：
- 27,640
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Series :
- Omnimate SL
- Packaging :
- Bulk
- Insulation Height :
- 0.472 12.00mm
- Pitch :
- 0.200 5.08mm
- Insulation Material :
- Nylon
- Contact Tail Length :
- 0.126 3.20mm
- Mounting Type :
- Through Hole
- Approval Agency :
- cURus
- Termination Style :
- Solder
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Header Orientation :
- Vertical
- Contact Mating Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- COPPER ALLOY
- Current - UL :
- 18.5A
- Voltage - IEC :
- 400V
- Factory Lead Time :
- 14 Weeks
- Hole Diameter :
- 1.3 mm
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Color :
- Orange
- Voltage - UL :
- 300V
- Operating Temperature :
- -50°C~100°C
- Voltage - Rated :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 14
- Current Rating :
- 24A
- Number of Levels :
- 1
- Datasheets
- 1147000000
Bulk 0.200 5.08mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1147000000 Overview
This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate SL Series.As a result, the device runs at -50°C~100°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
1147000000 Features
Omnimate SL series
1147000000 Applications
There are a lot of Weidmüller
1147000000 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
