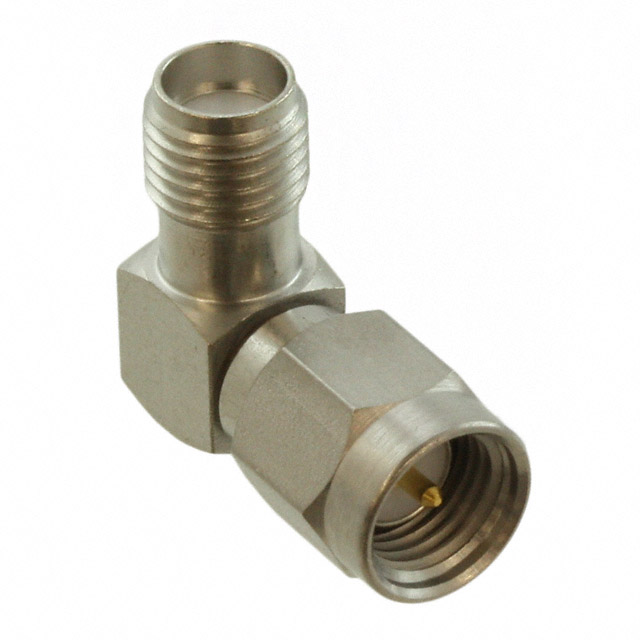

1055070-1

Share

Or copy the link below:

Mfr.Part #
1055070-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SMA
Datasheet
Download
Description
CONN ADAPT PLUG-JACK OSM 50 OHM
Stock
8,283
In Stock :
8,283

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Coaxial Connector (RF) Adapters
Published :
2001
Lead Free :
Lead Free
Body Material :
Stainless Steel
Frequency :
18GHz
Plating :
Passivated
Gender Type A :
Male
ECCN Code :
EAR99
DIN Conformance :
No
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
REACH SVHC :
Unknown
Factory Lead Time :
10 Weeks
Center Contact Material :
BERYLLIUM COPPER
Dielectric Material :
Polytetrafluoroethylene (PTFE)
Coupling Type :
THREADED-THREADED
Gender Type B :
FEMALE
Option :
GENERAL PURPOSE
Adapter Type :
Plug to Jack
Adapter Series :
OSM to OSM
Length :
14.9mm
Convert From (Adapter End) :
SMA Plug, Male Pin
Center Gender :
Female to Male
Conversion Type :
Same Series
ELV :
Compliant
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Bulk
Convert To (Adapter End) :
SMA Jack, Female Socket
RoHS Status :
RoHS Compliant
Style :
RIGHT ANGLE
HTS Code :
8536.69.80.00
Contact Material :
Copper
Sealable :
No
Connector Type :
Coaxial
Reliability :
COMMERCIAL
Additional Feature :
CAPTIVE CENTER CONTACT
Orientation :
RIGHT ANGLE
Mount :
Free Hanging, Through Hole
Center Contact Plating :
Gold
Insertion Loss :
0.25 dB
Package / Case :
SMA
Pbfree Code :
yes
Insulation Material :
Tetrafluoroethylene
Fastening Type :
Threaded, Threaded
IEC Conformance :
No
Filter Feature :
No
Number of Contacts :
1
MIL Conformance :
No
Mating Cycles :
500
Impedance :
50Ohm
Mounting Type :
Free Hanging (In-Line), Right Angle
Depth :
7.9mm
Operating Temperature :
-65°C~125°C
Datasheets
1055070-1
Introducing Coaxial Connector (RF) Adapters TE Connectivity AMP Connectors 1055070-1 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:SMA, Mounting Type:Free Hanging (In-Line), Right Angle, Operating Temperature:-65°C~125°C, 1055070-1 pinout, 1055070-1 datasheet PDF, 1055070-1 amp .Beyond Coaxial Connector (RF) Adapters TE Connectivity AMP Connectors 1055070-1 ,we also offer 112437, 112443, 031-4803-RFX, Our vast inventory has you covered. Contact us now for immediate solutions.
