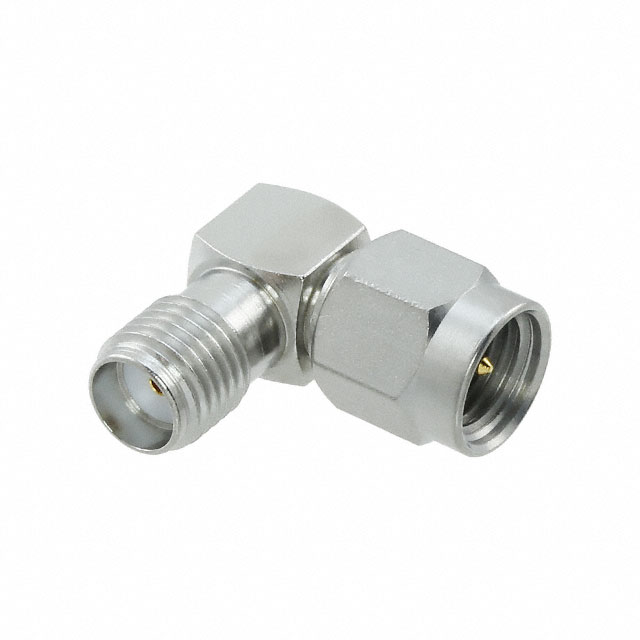

1055065-1

Share

Or copy the link below:

Mfr.Part #
1055065-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
SMA
Datasheet
Download
Description
CONN ADAPT PLUG-JACK OSM 50 OHM
Stock
14,194
In Stock :
14,194

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Coaxial Connector (RF) Adapters
Adapter Type :
Plug to Jack
Mounting Type :
Free Hanging (In-Line), Right Angle
Contact Material :
Copper
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Connector Type :
Coaxial
Plating :
Passivated
Body Material :
Stainless Steel
Number of Contacts :
1
Fastening Type :
Threaded, Threaded
Orientation :
RIGHT ANGLE
Convert From (Adapter End) :
SMA Plug, Male Pin
Insulation Material :
Tetrafluoroethylene
Impedance :
50Ohm
DIN Conformance :
No
Dielectric Material :
Polytetrafluoroethylene (PTFE)
Operating Temperature (Min) :
-65°C
Center Contact Plating :
Gold
Option :
GENERAL PURPOSE
Gender Type A :
Male
Mating Cycles :
500
Center Contact Material :
BERYLLIUM COPPER
Lead Free :
Not Applicable
MIL Conformance :
yes
REACH SVHC :
Unknown
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mount :
Free Hanging
Termination :
Connector
Contact Gender :
Female to Male
Packaging :
Bulk
IEC Conformance :
No
Conversion Type :
Same Series
HTS Code :
8536.69.80.00
RoHS Status :
RoHS Compliant
Sealable :
No
Style :
RIGHT ANGLE
Center Gender :
Female to Male
Height :
15.65mm
Convert To (Adapter End) :
SMA Jack, Female Socket
Frequency :
12.4GHz
Published :
2002
Frequency (Max) :
18GHz
Package / Case :
SMA
Filter Feature :
No
ELV :
Compliant
Length :
12.7mm
ECCN Code :
EAR99
Depth :
7.9mm
Gender Type B :
FEMALE
Factory Lead Time :
12 Weeks
Reliability :
COMMERCIAL
Adapter Series :
OSM to OSM
Datasheets
1055065-1
Introducing Coaxial Connector (RF) Adapters TE Connectivity AMP Connectors 1055065-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Right Angle, Package / Case:SMA, 1055065-1 pinout, 1055065-1 datasheet PDF, 1055065-1 amp .Beyond Coaxial Connector (RF) Adapters TE Connectivity AMP Connectors 1055065-1 ,we also offer 112437, 112443, 031-4803-RFX, Our vast inventory has you covered. Contact us now for immediate solutions.
