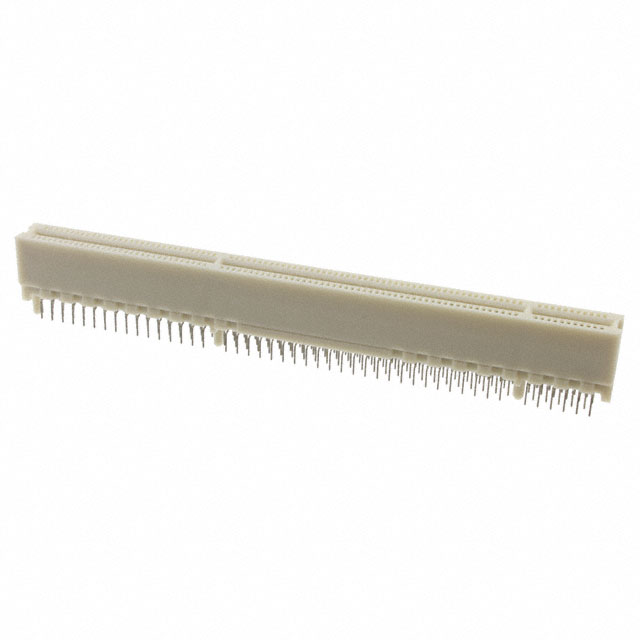

1-5145165-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

IEC Conformance :

No

Color :

Natural

Lead Pitch :

1.27mm

Mounting Type :

Through Hole

Number Of PCB Rows :

4

HTS Code :

8536.69.40.40

Number of Rows :

2

Gender :

FEMALE

Material - Insulation :

Thermoplastic

Termination :

Solder, Staggered

Contact Resistance :

30mOhm

Pitch :

0.050 1.27mm

Packaging :

Bulk

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Option :

GENERAL PURPOSE

Number of Positions/Bay/Row :

11; 49; 32

Width :

8.88mm

Min Operating Temperature :

-55°C

Weight :

12.58g

Rated Current (Signal) :

1A

Feature :

Board Guide

ECCN Code :

EAR99

Termination Post Length :

3.56mm

Operating Supply Voltage :

203V

Contact Pattern :

RECTANGULAR

Card Type :

PCI 3.3V 64 Bit

Number of Positions :

184

Height :

13.97mm

Plating Thickness :

2.54μm

DIN Conformance :

No

Max Voltage Rating (AC) :

203V

Length :

128mm

PCB Thickness :

1.5748mm

Max Operating Temperature :

85°C

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Dielectric Withstanding Voltage :

500VAC V

Series :

Standard Edge .050

Orientation :

Vertical

Circuit Application :

Signal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Breadth :

0.35 inch

Address Bus Width :

64B

Contact Style :

BELLOWED TYPE

Body Depth :

0.61 inch

Contact Finish Thickness :

30.0μin 0.76μm

Reliability :

COMMERCIAL

RoHS Status :

RoHS Compliant

Read Out :

Dual

Published :

2008

Insulation Resistance :

1000000000Ohm

Total Number of Contacts :

184

Durability :

100 Cycles

Withdrawl Force-Min :

.0834 N

Current Rating :

500mA

MIL Conformance :

No

Card Thickness :

0.062 1.57mm

JESD-609 Code :

e3

Filter Feature :

No

Connector Type :

CARD EDGE CONNECTOR

Number of Conductors :

ONE

Contact Finish :

Gold

Mount :

Through Hole

Lead Length :

3.556mm

Reference Standard :

UL, CSA

Factory Lead Time :

14 Weeks

Body/Shell Style :

Receptacle
