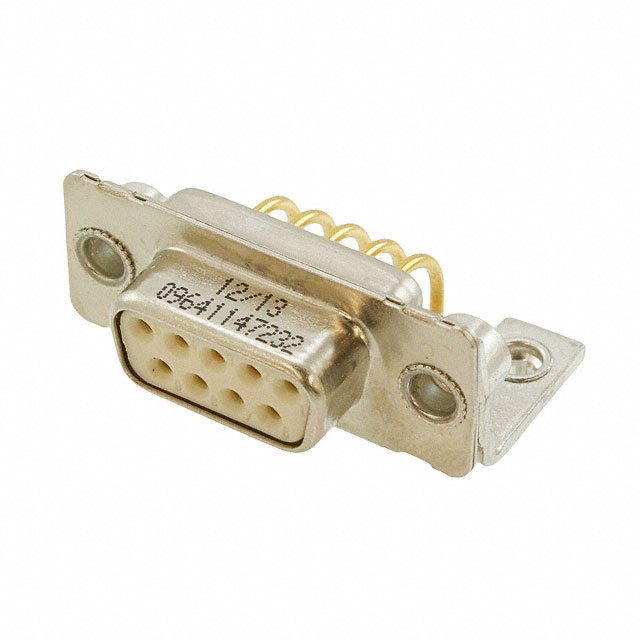

09641147232

Manufacturer :

HARTING

Product Category :

D-Sub Connector Assemblies

Factory Lead Time :

19 Weeks

Dielectric Material :

Polycyclohexylenedimethylene Terephthalate (PCT)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Contact Type :

Signal

Mounting Type :

Through Hole, Right Angle

Additional Feature :

PANEL MOUNTABLE

Width :

12.5mm

Contact Material :

COPPER ALLOY

Number of Ports :

1

Material Flammability Rating :

UL94 V-0

Flange Feature :

Housing/Shell (4-40)

Lead Free :

Lead Free

Orientation :

RIGHT ANGLE

Connector Type :

Receptacle, Female Sockets

Option :

GENERAL PURPOSE

Filter Feature :

yes

MIL Conformance :

No

DIN Conformance :

No

Shell Material, Finish :

Steel

Pbfree Code :

yes

Mount :

Board Lock, PCB, Through Hole

Connector Style :

D-Sub

Contact Form :

Machined

RoHS Status :

ROHS3 Compliant

Number of Positions :

9

Contact Resistance :

10MOhm

Voltage - Rated DC :

100V

Gender :

Receptacle

Working Voltage :

100V

Housing Material :

Glass

Flammability Rating :

UL94 V-0

Length :

30.8mm

Color :

Natural

Depth :

21.6mm

Empty Shell :

No

Capacitance :

1nF

Pitch :

2.54mm

Packaging :

Bulk

Operating Temperature :

-55°C~125°C

Radiation Hardening :

No

Body Material :

Metal, Plastic, Steel

Backset Spacing :

0.401 (10.20mm)

IEC Conformance :

No

Insulation Resistance :

1GOhm

Max Supply Voltage :

100V

Shell Size, Connector Layout :

1 DE E

Approval Agency :

UL

Current Rating :

7.5A

Total Number of Contacts :

9

Feature :

Board Lock, Filter, Mounting Brackets

Contact Plating :

Gold

Mixed Contacts :

No

REACH SVHC :

No SVHC

Termination :

Solder
