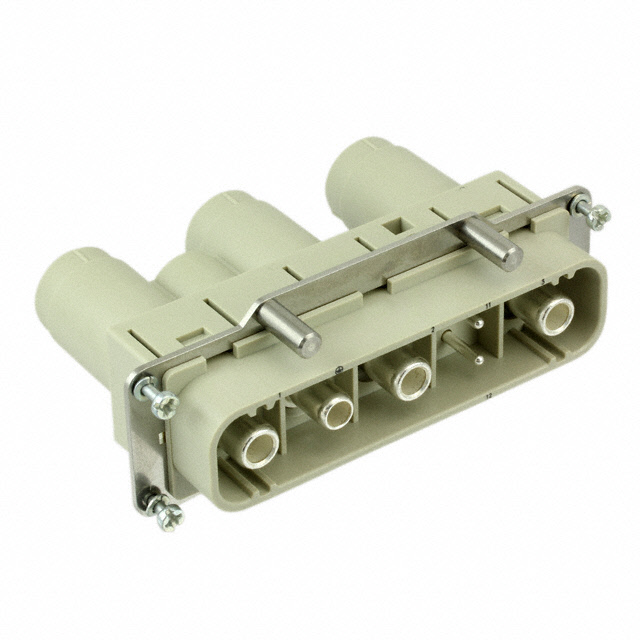

09380052601
Or copy the link below:
- Mfr.Part #
- 09380052601
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- INSERT MALE 3+2POS+1GND SCREW
- Stock
- 27,951
- In Stock ：
- 27,951
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Inserts, Modules
- Contact Material :
- COPPER ALLOY
- MIL Conformance :
- No
- Length :
- 112mm
- Factory Lead Time :
- 7 Weeks
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~125°C
- IEC Conformance :
- No
- Gender :
- Male
- Number of Rows :
- 1
- Housing Material :
- Polycarbonate (PC)
- Pbfree Code :
- yes
- Connector Type :
- INSERT
- Current Rating :
- 200A
- Depth :
- 43mm
- Number of Contacts :
- 3
- Option :
- GENERAL PURPOSE
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 3+2+Ground
- Size :
- 24HPR
- Termination Style :
- Screw
- Lead Free :
- Lead Free
- Number of Pins :
- 2
- DIN Conformance :
- No
- Contact Finish :
- Silver
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Color :
- Gray
- Series :
- Han-Com®
- Packaging :
- Bulk
- Datasheets
- 09380052601
09380052601 datasheet pdf and Heavy Duty Connectors - Inserts, Modules product details from HARTING stock available at Xinshop
