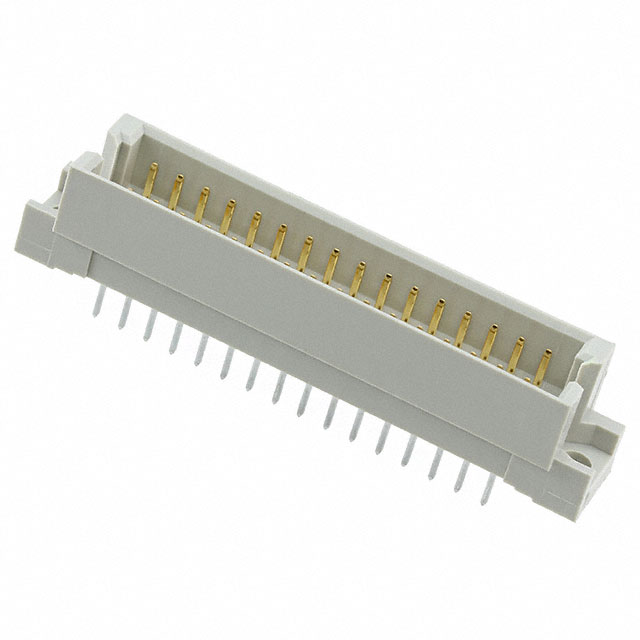

09281326903

Manufacturer :

HARTING

Product Category :

DIN 41612

Operating Temperature :

-55°C~125°C

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Housing Material :

Polybutylene

Number Of PCB Rows :

3

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Mixed Contacts :

No

Level, Class :

2

Pitch :

0.100 2.54mm

Filter Feature :

No

Max Current Rating :

2A

Number of Positions Loaded :

32

Connector Type :

Header, Male Pins

Housing Color :

Grey

Mating Contact Row Spacing :

0.1 inch

Reference Standard :

VDE,CSA

Withdrawl Force-Min :

1.5568 N

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Insertion Force-Max :

1.5568 N

DIN Conformance :

yes

Contact Finish Thickness :

Flash

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Factory Lead Time :

7 Weeks

Contact Finish :

Gold or Gold-Palladium

Length :

55mm

UL Flammability Code :

94V-0

Contact Resistance :

15mOhm

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e4

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Working Voltage :

250V

Mount :

Through Hole

Depth :

11.1mm

Number of Rows :

3

Style :

2R

Rated Current (Signal) :

2A

ECCN Code :

EAR99

Contact Material :

Copper

IEC Conformance :

No

Current Rating :

2A

Voltage - Rated DC :

250V

Total Number of Contacts :

32

Name of Rows Loaded :

A,C

Lead Pitch :

2.54mm

Contact Plating :

Gold

Dielectric Withstanding Voltage :

1000VAC V

Insulation Resistance :

1000000000000Ohm

Termination :

Solder

Contact Gender :

Male

Number of Positions :

48

Orientation :

Right Angle, Straight

REACH SVHC :

No SVHC

Lead Length :

4mm
