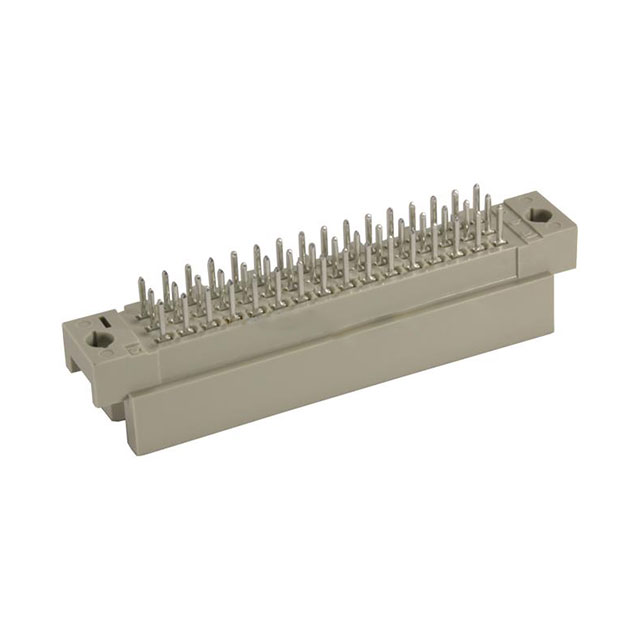

09281326902

Manufacturer :

HARTING

Product Category :

DIN 41612

ECCN Code :

EAR99

Length - Termination :

0.098 inch

PCB Contact Pattern :

RECTANGULAR

Mounting Type :

Through Hole

Contact Material :

NOT SPECIFIED

Body Depth :

0.457 inch

Contact Finish Thickness :

Flash

Number of Positions Loaded :

32

MIL Conformance :

No

Connector Type :

Header, Male Pins

Packaging :

Bulk

Number Of PCB Rows :

3

Level, Class :

2

Name of Rows Loaded :

A,C

Contact Resistance :

15mOhm

Polarization Key :

POLARIZED HOUSING

Total Number of Contacts :

32

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Mating Contact Row Spacing :

0.1 inch

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Factory Lead Time :

7 Weeks

Material Flammability Rating :

UL94 V-0

DIN Conformance :

yes

Withdrawl Force-Min :

1.5568 N

Dielectric Withstanding Voltage :

1000VAC V

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions :

48

JESD-609 Code :

e4

Reference Standard :

VDE,CSA

Pbfree Code :

yes

Termination :

Solder

Pitch :

0.100 2.54mm

Insertion Force-Max :

1.5568 N

Series :

DIN 41612

Current Rating (Amps) :

2A

Style :

2R

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Insulation Resistance :

1000000000000Ohm

Contact Finish :

Gold-Palladium

Number of Rows :

3

Mixed Contacts :

No
