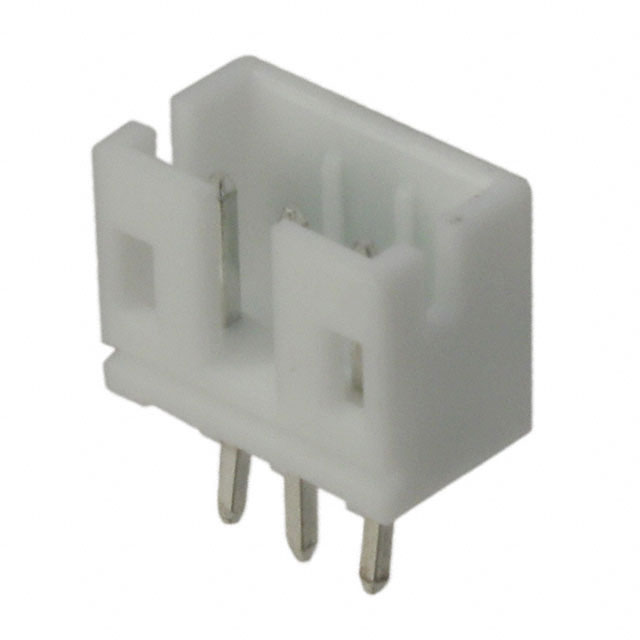

0894000320

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Min Operating Temperature :

-25°C

Termination :

Kinked Pin, Solder

Option :

GENERAL PURPOSE

MIL Conformance :

No

Packaging :

Bulk

IEC Conformance :

No

Mixed Contacts :

No

Contact Resistance :

40mOhm

Insulation Material :

Polyamide (PA66), Nylon 6/6

Insulation Height :

0.238 6.05mm

Pbfree Code :

yes

Number of Positions Loaded :

All

Mount :

Through Hole

Orientation :

Vertical

Material Flammability Rating :

UL94 V-0

Depth :

4.65mm

UL Flammability Code :

94V-0

Current Rating :

4A

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square

Radiation Hardening :

No

Number of Positions :

3

Number of Rows :

1

ECCN Code :

EAR99

Contact Length - Post :

0.134 3.40mm

Shrouding :

Shrouded - 4 Wall

Length :

8mm

Number of Circuits :

2

Series :

89400

Connector Type :

Header

Style :

Board to Cable/Wire

Contact Finish Thickness - Post :

50.0μin 1.27μm

Contact Type :

Male Pin

Contact Finish Thickness - Mating :

50.0μin 1.27μm

Housing Color :

Natural

Fastening Type :

Detent Lock

Max Operating Temperature :

85°C

Contact Finish - Mating :

Tin

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Housing Material :

Thermoplastic

Contact Material :

Brass

DIN Conformance :

No
