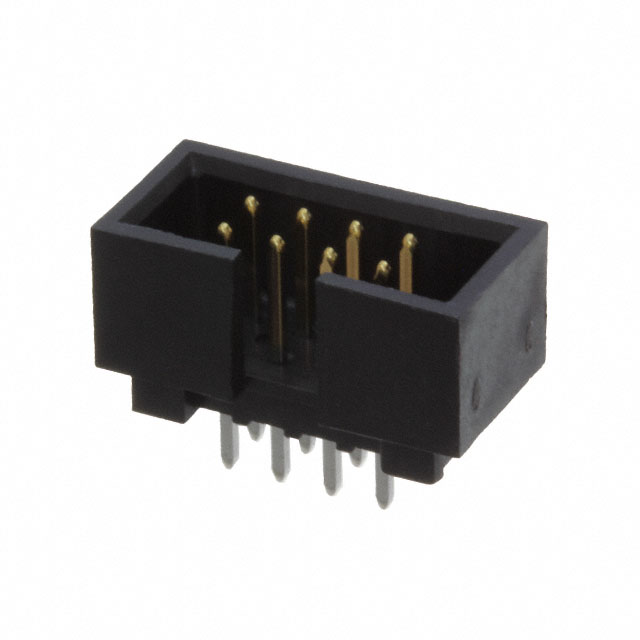

0702460801
Or copy the link below:
- Mfr.Part #
- 0702460801
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2.54MM
- Stock
- 9,732
- In Stock ：
- 9,732
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Number of Positions :
- 8
- Termination :
- Solder
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Push-Pull
- IEC Conformance :
- No
- Additional Feature :
- LOW PROFILE, SHROUDED
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Post :
- 0.135 3.43mm
- UL Flammability Code :
- 94V-0
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 13 Weeks
- DIN Conformance :
- No
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Insulation Color :
- Black
- Mixed Contacts :
- No
- Connector Type :
- Header
- JESD-609 Code :
- e3
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Finish - Mating :
- Gold
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Overall Contact Length :
- 0.500 12.70mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Rows :
- 2
- Style :
- Board to Cable/Wire
- Series :
- C-Grid 70246
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- MIL Conformance :
- No
- Insulation Height :
- 0.365 9.27mm
- Feature :
- Keying Slot
- Filter Feature :
- No
- Datasheets
- 0702460801
0702460801 Documents
C-Grid 70246 Series 2-Row Header Solder Phosphor Bronze Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 8-Position Board to Cable/Wire 0.365 9.27mm Height
0702460801 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the C-Grid 70246 Series of products.Additionally, there are other features, such as LOW PROFILE, SHROUDED.It is possible for the device to be used for the application Automotive, General Purpose, Lighting, Medical, Telecommunications.A number of features make it more powerful because of its Keying Slot feature.
0702460801 Features
C-Grid 70246 series
0702460801 Applications
There are a lot of Molex
0702460801 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
