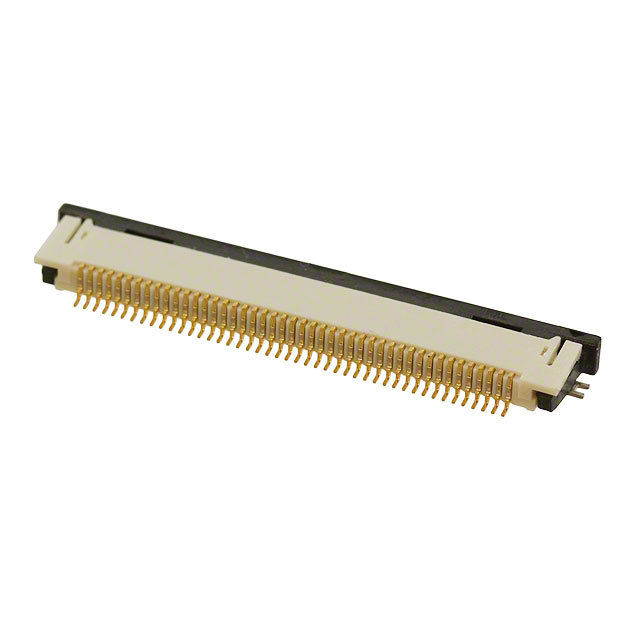

0541324562

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Series :

54132

Withdrawl Force-Min :

ZIF N

Height Above Board :

0.079 2.00mm

Contact Finish Thickness :

3.94μin 0.10μm

Mounting Option 1 :

LOCKING

Mixed Contacts :

No

Contact Style :

SINGLE PRONG

Reference Standard :

UL

Flat Flex Type :

FFC, FPC

Filter Feature :

No

IEC Conformance :

No

Factory Lead Time :

13 Weeks

Insertion Force-Max :

ZIF N

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tape and Reel (TR)

Actuator Color :

Black

Pitch :

0.020 0.50mm

Insulation Resistance :

50000000Ohm

Additional Feature :

EASY-ON, POLARIZED

Housing Color :

White

Operating Temperature :

-20°C~85°C

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Cycles :

20

Contact Finish :

Gold

DIN Conformance :

No

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Reliability :

COMMERCIAL

Pbfree Code :

yes

Body Length or Diameter :

1.102 inch

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Connector Type :

FFC/FPC CONNECTOR

Body Depth :

0.197 inch

Material Flammability Rating :

UL94 V-0

Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Contact Gender :

FEMALE

Connector/Contact Type :

Contacts, Bottom

Cable End Type :

Straight, Tapered

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

FFC, FCB Thickness :

0.30mm

Voltage - Rated :

50V

Locking Feature :

Slide Lock

Current Rating (Amps) :

0.5A

Number Of PCB Rows :

1

Total Number of Contacts :

45

Number of Rows :

1

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Number of Positions :

45

Mounting Type :

Surface Mount, Right Angle

Board Mounting Option :

FITTING NAIL

Termination :

Solder

Body Breadth :

0.079 inch

JESD-609 Code :

e4

Contact Material :

Phosphor Bronze
