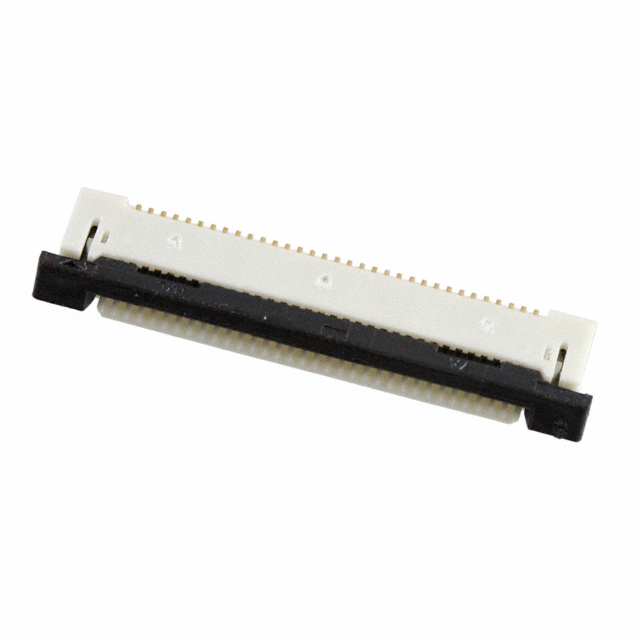

0541323362

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Body Breadth :

0.079 inch

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Reliability :

COMMERCIAL

Contact Material :

Phosphor Bronze

Actuator Color :

Black

Pbfree Code :

yes

Mixed Contacts :

No

Insertion Force-Max :

ZIF N

Filter Feature :

No

Insulation Resistance :

50000000Ohm

Series :

54132

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Operating Temperature :

-20°C~85°C

Contact Gender :

FEMALE

Current Rating (Amps) :

0.5A

Contact Finish Thickness :

3.94μin 0.10μm

Additional Feature :

EASY-ON, POLARIZED

UL Flammability Code :

94V-0

Mounting Type :

Surface Mount, Right Angle

Number of Positions :

33

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Cable End Type :

Straight, Tapered

Pitch :

0.020 0.50mm

Board Mounting Option :

FITTING NAIL

Reference Standard :

UL

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Housing Color :

White

Feature :

Solder Retention, Zero Insertion Force (ZIF)

HTS Code :

8536.69.40.51

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Withdrawl Force-Min :

ZIF N

Packaging :

Tape and Reel (TR)

IEC Conformance :

No

Voltage - Rated :

50V

MIL Conformance :

No

Number of Rows :

1

Mating Cycles :

20

Factory Lead Time :

12 Weeks

FFC, FCB Thickness :

0.30mm

Mounting Option 1 :

LOCKING

ECCN Code :

EAR99

Total Number of Contacts :

33

Locking Feature :

Slide Lock

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Length or Diameter :

0.866 inch

JESD-609 Code :

e4

Flat Flex Type :

FFC, FPC

Contact Pattern :

RECTANGULAR

Connector/Contact Type :

Contacts, Bottom

Connector Type :

FFC/FPC CONNECTOR

Body Depth :

0.197 inch

Height Above Board :

0.079 2.00mm

DIN Conformance :

No

Contact Style :

SINGLE PRONG

Contact Finish :

Gold
