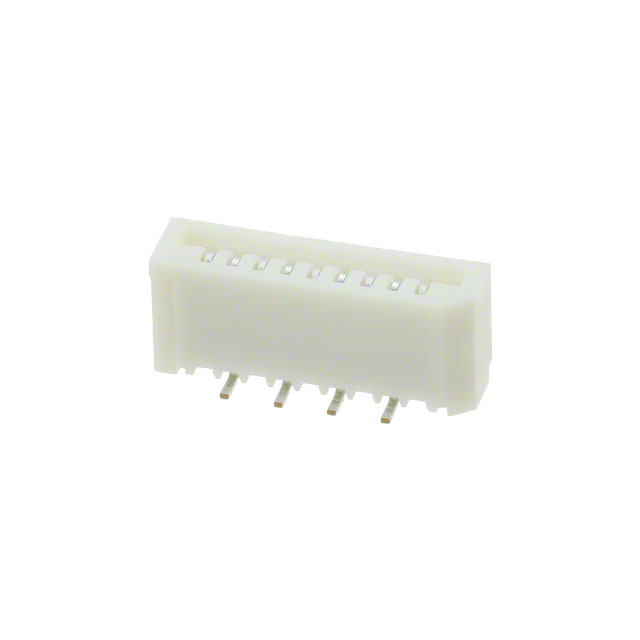

0528080970
Or copy the link below:
- Mfr.Part #
- 0528080970
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC VERT 9POS 1.00MM SMD
- Stock
- 29,859
- In Stock ：
- 29,859
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Flat Flex Type :
- FPC
- Option :
- GENERAL PURPOSE
- Body/Shell Style :
- Receptacle
- Number of Rows :
- 1
- Mating Cycles :
- 10
- Material Flammability Rating :
- UL94 V-0
- JESD-609 Code :
- e6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 125V
- Pitch :
- 0.039 1.00mm
- Series :
- Easy-On 52808
- Cable End Type :
- Straight
- Mixed Contacts :
- No
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -20°C~85°C
- Total Number of Contacts :
- 9
- FFC, FCB Thickness :
- 0.30mm
- IEC Conformance :
- No
- Filter Feature :
- No
- Packaging :
- Tape and Reel (TR)
- Height Above Board :
- 0.199 5.05mm
- Contact Material :
- Phosphor Bronze
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Contact Finish :
- TIN BISMUTH
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 14 Weeks
- Current Rating (Amps) :
- 0.5A
- DIN Conformance :
- No
- Contact Gender :
- FEMALE
- Termination :
- Solder
- MIL Conformance :
- No
- Number of Positions :
- 9
- Datasheets
- 0528080970
0528080970 Documents
Easy-On 52808 Series FPC Contacts, Vertical - 1 Sided Tape & Reel (TR) 0.039 1.00mm Solder 9 Positions Surface Mount Tin Bismuth -20°C~85°C 0.5A
0528080970 Overview
Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Easy-On 52808 Series.Operating temperature is set to -20°C~85°C.
0528080970 Features
Easy-On 52808 series
0528080970 Applications
There are a lot of Molex
0528080970 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
