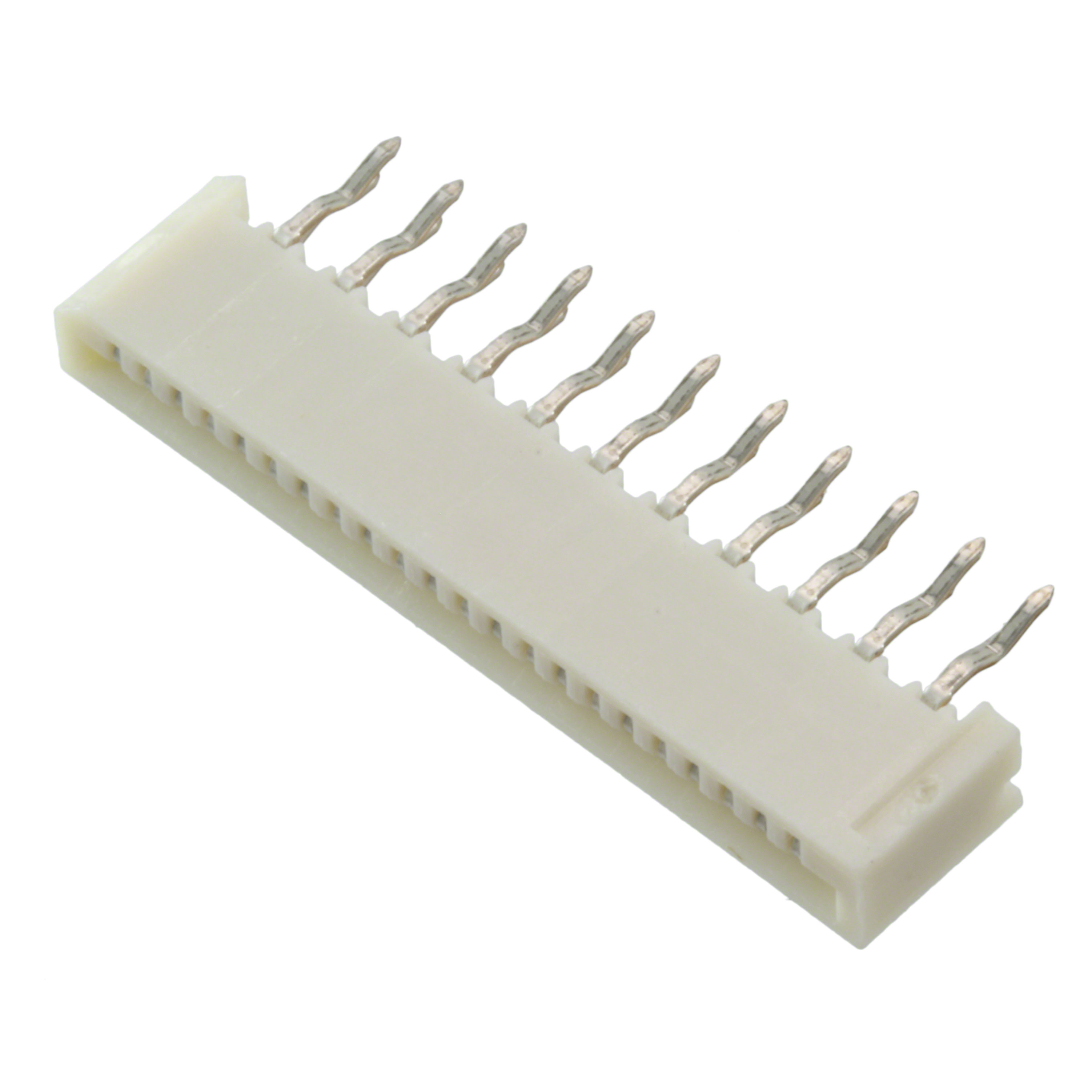

0528062210
Or copy the link below:
- Mfr.Part #
- 0528062210
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC VERT 22POS 1.00MM PCB
- Stock
- 5,667
- In Stock ：
- 5,667
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- FFC, FCB Thickness :
- 0.30mm
- Voltage - Rated :
- 50V
- Contact Finish :
- Tin
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Factory Lead Time :
- 12 Weeks
- Operating Temperature :
- -20°C~80°C
- Termination :
- Kinked Pin
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Series :
- 52806
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flat Flex Type :
- FPC
- Pitch :
- 0.039 1.00mm
- Mating Cycles :
- 10
- Current Rating (Amps) :
- 0.5A
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 22
- Cable End Type :
- Straight
- Material Flammability Rating :
- UL94 V-0
- Height Above Board :
- 0.213 5.40mm
- Datasheets
- 0528062210
52806 Series FPC Contacts, Vertical - 1 Sided Tray 0.039 1.00mm Kinked Pin 22 Positions Through Hole Tin -20°C~80°C 0.5A
0528062210 Overview
There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the 52806 Series.In this case, the device operates at -20°C~80°C Operating Temperature.
0528062210 Features
52806 series
0528062210 Applications
There are a lot of Molex
0528062210 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
