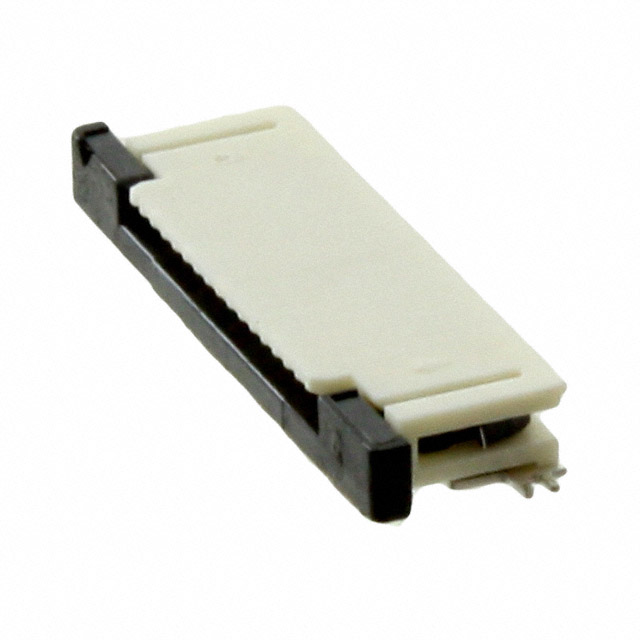

0527451697
- Mfr.Part #
- 0527451697
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 16POS 0.50MM R/A
- Stock
- 4,800
- In Stock :
- 4,800
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- DIN Conformance :
- No
- Operating Temperature :
- -20°C~85°C
- Pitch :
- 0.020 0.50mm
- Additional Feature :
- EASY-ON, POLARIZED
- Reference Standard :
- UL
- Contact Gender :
- FEMALE
- Mating Cycles :
- 20
- Mounting Option 1 :
- LOCKING
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 16
- FFC, FCB Thickness :
- 0.30mm
- Termination :
- Solder
- Contact Pattern :
- RECTANGULAR
- Board Mounting Option :
- FITTING NAIL
- Filter Feature :
- No
- JESD-609 Code :
- e4
- Number of Positions :
- 16
- Insertion Force-Max :
- ZIF N
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulator Color :
- White
- Voltage - Rated :
- 50V
- Contact Material :
- Phosphor Bronze
- Number Of PCB Rows :
- 1
- Body Depth :
- 0.197 inch
- Cable End Type :
- Straight
- Body Length or Diameter :
- 0.555 inch
- MIL Conformance :
- No
- Connector/Contact Type :
- Contacts, Top
- Height Above Board :
- 0.079 2.00mm
- Insulation Resistance :
- 50000000Ohm
- Reliability :
- COMMERCIAL
- Withdrawl Force-Min :
- ZIF N
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Number of Rows :
- 1
- Factory Lead Time :
- 13 Weeks
- Mixed Contacts :
- No
- Body Breadth :
- 0.079 inch
- Packaging :
- Tape and Reel (TR)
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Current Rating (Amps) :
- 0.5A
- Contact Finish :
- Gold
- HTS Code :
- 8536.69.40.51
- IEC Conformance :
- No
- Connector Type :
- FFC/FPC CONNECTOR
- Contact Style :
- SINGLE PRONG
- UL Flammability Code :
- 94V-0
- Mounting Type :
- Surface Mount, Right Angle
- Series :
- 52745
- RoHS Status :
- ROHS3 Compliant
- Locking Feature :
- Slide Lock
- Datasheets
- 0527451697
0527451697 Documents

52745 Series Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 16 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
0527451697 Overview
The packaging contains FFC/FPC CONNECTOR.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the 52745 Series.To name a few, there is also EASY-ON, POLARIZED.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.As a result, the device runs at -20°C~85°C Operating Temperature.
