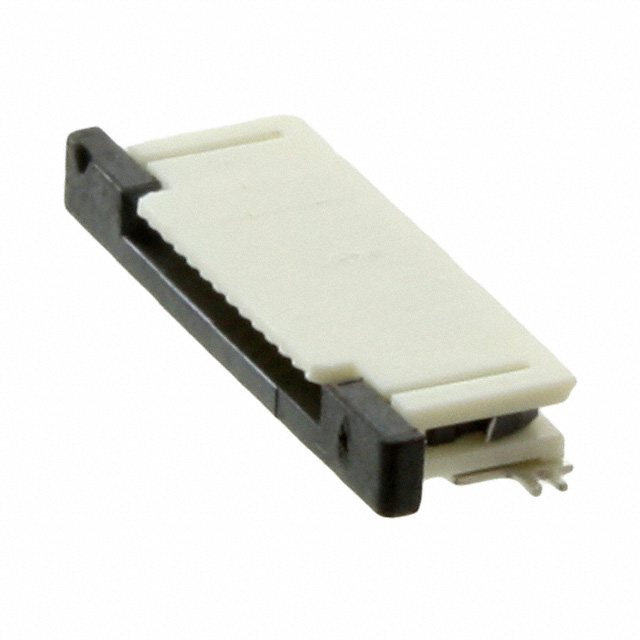

0527451397

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Mounting Option 1 :

LOCKING

Voltage - Rated :

50V

Connector Type :

FFC/FPC CONNECTOR

Reliability :

COMMERCIAL

Insulation Resistance :

50000000Ohm

Number of Positions :

13

Board Mounting Option :

FITTING NAIL

Number Of PCB Rows :

1

Contact Gender :

FEMALE

Contact Material :

Phosphor Bronze

Termination :

Solder

Operating Temperature :

-20°C~85°C

Contact Finish :

Gold

Height Above Board :

0.079 2.00mm

Reference Standard :

UL

Mounting Type :

Surface Mount, Right Angle

Withdrawl Force-Min :

ZIF N

Insertion Force-Max :

ZIF N

ECCN Code :

EAR99

Current Rating (Amps) :

0.5A

Factory Lead Time :

15 Weeks

Mixed Contacts :

No

DIN Conformance :

No

Total Number of Contacts :

13

Additional Feature :

EASY-ON, POLARIZED

Pbfree Code :

yes

Locking Feature :

Slide Lock

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

1

Mating Cycles :

20

HTS Code :

8536.69.40.51

JESD-609 Code :

e4

Packaging :

Tape and Reel (TR)

MIL Conformance :

No

Cable End Type :

Straight

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Body Depth :

0.197 inch

Pitch :

0.020 0.50mm

Body Length or Diameter :

0.496 inch

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Connector/Contact Type :

Contacts, Top

Filter Feature :

No

FFC, FCB Thickness :

0.30mm

UL Flammability Code :

94V-0

Contact Pattern :

RECTANGULAR

Insulator Color :

White

Body Breadth :

0.079 inch

Series :

52745

Contact Style :

SINGLE PRONG
