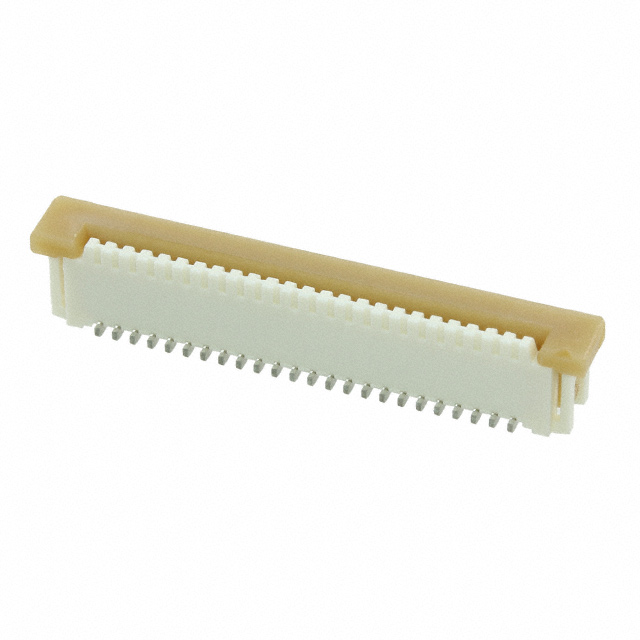

0526102433

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Feature :

Zero Insertion Force (ZIF)

IEC Conformance :

No

Current Rating (Amps) :

1A

Contact Material :

Phosphor Bronze

Number of Positions :

24

Pbfree Code :

yes

Cable End Type :

Tapered

Actuator Color :

Brown

Housing Color :

White

Height Above Board :

0.226 5.74mm

Locking Feature :

Slide Lock

Pitch :

0.039 1.00mm

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.51

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body/Shell Style :

Receptacle

Total Number of Contacts :

24

FFC, FCB Thickness :

0.30mm

Mixed Contacts :

No

Series :

Easy-On 52610

Mounting Type :

Surface Mount

Factory Lead Time :

14 Weeks

Filter Feature :

No

Packaging :

Tape and Reel (TR)

Mating Cycles :

30

MIL Conformance :

No

Option :

GENERAL PURPOSE

Operating Temperature :

-40°C~85°C

Connector/Contact Type :

Contacts, Vertical - 1 Sided

JESD-609 Code :

e6

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Contact Finish Thickness :

39.4μin 1.00μm

Contact Gender :

FEMALE

Termination :

Solder

Contact Finish :

TIN BISMUTH

Voltage - Rated :

125V

UL Flammability Code :

94V-0

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Flat Flex Type :

FPC

Number of Rows :

1
