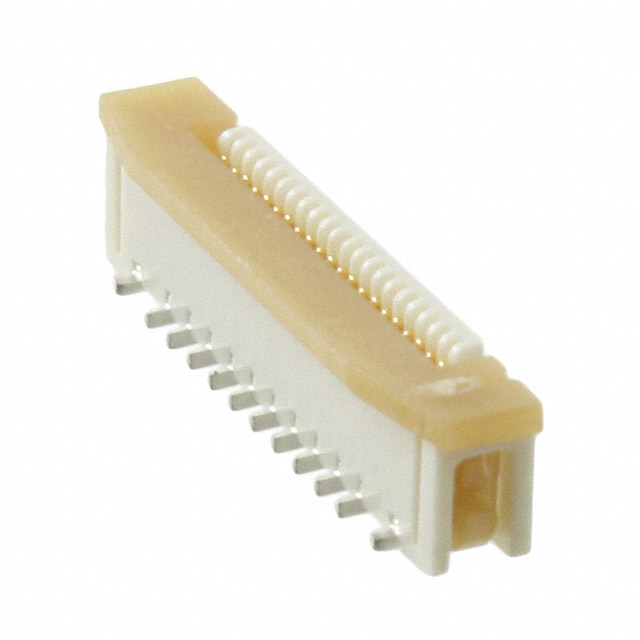

0525592152

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Operating Temperature :

-40°C~85°C

Voltage - Rated :

50V

Number of Rows :

1

Connector Type :

FFC/FPC CONNECTOR

Withdrawl Force-Min :

ZIF N

Current Rating (Amps) :

0.5A

Number of Positions :

21

PCB Contact Row Spacing :

2.794 mm

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Insertion Force-Max :

ZIF N

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Style :

BELLOWED TYPE

MIL Conformance :

No

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

HTS Code :

8536.69.40.51

Mixed Contacts :

No

DIN Conformance :

No

Contact Finish Thickness :

39.4μin 1.00μm

Body Breadth :

0.091 inch

Height Above Board :

0.154 3.90mm

Cable End Type :

Straight, Tapered

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Contact Pattern :

RECTANGULAR

Body Depth :

0.154 inch

Feature :

Zero Insertion Force (ZIF)

Locking Feature :

Slide Lock

Material Flammability Rating :

UL94 V-0

Contact Gender :

FEMALE

Housing Material :

Polyamide (PA46), Nylon 4/6

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL

Contact Finish :

Gold

Pbfree Code :

yes

ECCN Code :

EAR99

Connector/Contact Type :

Contacts, Vertical - 1 Sided

Termination :

Solder

Filter Feature :

No

Body Length or Diameter :

0.638 inch

FFC, FCB Thickness :

0.30mm

Board Mounting Option :

FITTING NAIL

Mounting Option 1 :

LOCKING

Factory Lead Time :

15 Weeks

Actuator Material :

Polyphenylene Sulfide (PPS)

Total Number of Contacts :

21

Pitch :

0.020 0.50mm

IEC Conformance :

No

Insulation Resistance :

50000000Ohm

Contact Material :

Phosphor Bronze

Mating Cycles :

20

Series :

Easy-On 52559

Option :

GENERAL PURPOSE

Flat Flex Type :

FFC, FPC

Mounting Type :

Surface Mount
