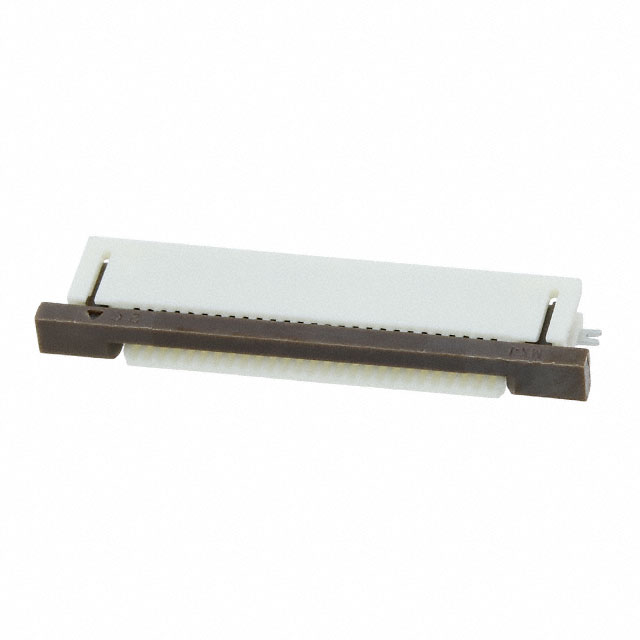

0524372771

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Body Length or Diameter :

0.791 inch

Actuator Color :

Brown

Contact Gender :

FEMALE

Contact Style :

BELLOWED TYPE

Additional Feature :

EASY-ON, POLARIZED

Plating Thickness :

4μin

UL Flammability Code :

94V-0

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Insertion Force-Max :

ZIF N

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Reference Standard :

UL

Contact Finish :

Gold

Option :

GENERAL PURPOSE

IEC Conformance :

No

JESD-609 Code :

e4

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Contact Material :

Phosphor Bronze

Number Of PCB Rows :

1

Locking Feature :

Slide Lock

Mounting Option 1 :

LOCKING

Number of Positions :

27

Factory Lead Time :

15 Weeks

Insulation Resistance :

50000000Ohm

Body Breadth :

0.079 inch

Height Above Board :

0.079 2.00mm

Voltage - Rated :

50V

Connector Type :

FFC/FPC CONNECTOR

Housing Color :

White

Cable End Type :

Straight, Tapered

Filter Feature :

No

Number of Rows :

1

RoHS Status :

ROHS3 Compliant

Withdrawl Force-Min :

ZIF N

Mounting Type :

Surface Mount, Right Angle

FFC, FCB Thickness :

0.30mm

Pbfree Code :

yes

Connector/Contact Type :

Contacts, Bottom

Flat Flex Type :

FFC, FPC

Mating Cycles :

20

Pitch :

0.020 0.50mm

Current Rating (Amps) :

0.5A

Reliability :

COMMERCIAL

Series :

Easy-On 52437

PCB Contact Pattern :

RECTANGULAR

HTS Code :

8536.69.40.51

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~85°C

Total Number of Contacts :

27

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)
