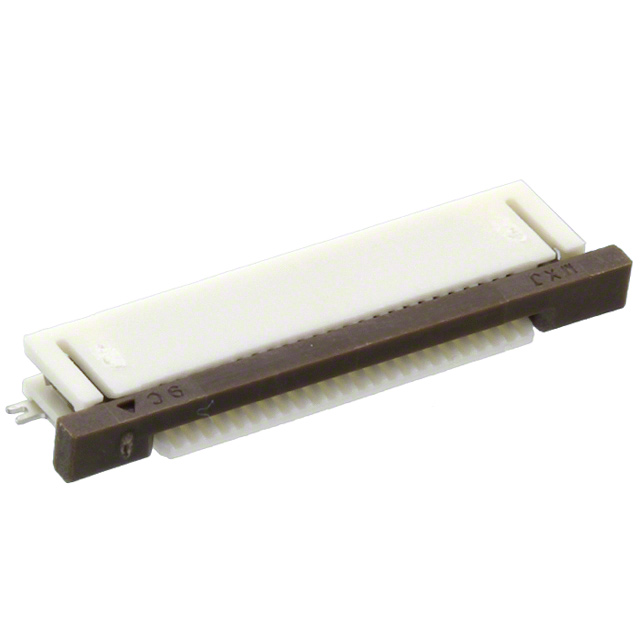

0524372433

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Option :

GENERAL PURPOSE

Packaging :

Tape and Reel (TR)

Contact Gender :

FEMALE

Connector Type :

FFC/FPC CONNECTOR

HTS Code :

8536.69.40.51

FFC, FCB Thickness :

0.30mm

DIN Conformance :

No

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mixed Contacts :

No

Number of Rows :

1

Termination :

Solder

Actuator Color :

Brown

Contact Material :

Phosphor Bronze

IEC Conformance :

No

UL Flammability Code :

94V-0

Current Rating (Amps) :

0.5A

Cable End Type :

Straight, Tapered

Connector/Contact Type :

Contacts, Bottom

Height Above Board :

0.079 2.00mm

Voltage - Rated :

50V

Pitch :

0.020 0.50mm

Additional Feature :

EASY-ON, POLARIZED

ECCN Code :

EAR99

JESD-609 Code :

e6

Locking Feature :

Slide Lock

Mating Cycles :

20

Housing Color :

White

Contact Finish :

TIN BISMUTH

Material Flammability Rating :

UL94 V-0

Series :

Easy-On 52437

Contact Finish Thickness :

39.4μin 1.00μm

Total Number of Contacts :

24

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

14 Weeks

Filter Feature :

No

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Flat Flex Type :

FFC, FPC

Mounting Type :

Surface Mount, Right Angle

Number of Positions :

24

Operating Temperature :

-40°C~85°C

MIL Conformance :

No
