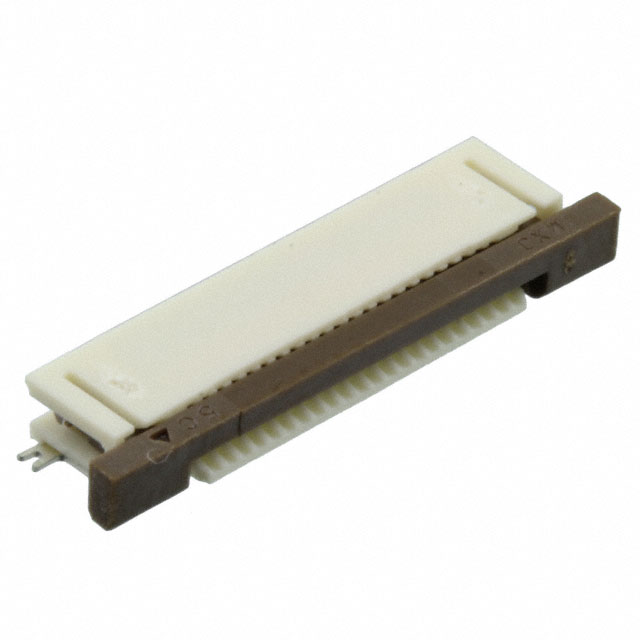

0524372271

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

RoHS Status :

ROHS3 Compliant

Connector Type :

FFC/FPC CONNECTOR

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Housing Color :

White

Current Rating (Amps) :

0.5A

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Voltage - Rated :

50V

Contact Material :

Phosphor Bronze

Flat Flex Type :

FFC, FPC

Pitch :

0.020 0.50mm

Number of Rows :

1

FFC, FCB Thickness :

0.30mm

Termination :

Solder

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Contact Pattern :

RECTANGULAR

Actuator Material :

Polyphenylene Sulfide (PPS), Glass Filled

Body Breadth :

0.079 inch

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number Of PCB Rows :

1

Series :

Easy-On 52437

Additional Feature :

EASY-ON, POLARIZED

JESD-609 Code :

e4

Total Number of Contacts :

22

Plating Thickness :

4μin

Mounting Type :

Surface Mount, Right Angle

DIN Conformance :

No

Cable End Type :

Straight, Tapered

Insulation Resistance :

50000000Ohm

Actuator Color :

Brown

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Option :

GENERAL PURPOSE

Locking Feature :

Slide Lock

UL Flammability Code :

94V-0

Withdrawl Force-Min :

ZIF N

Body Length or Diameter :

0.693 inch

Connector/Contact Type :

Contacts, Bottom

Mounting Option 1 :

LOCKING

Factory Lead Time :

14 Weeks

Insertion Force-Max :

ZIF N

MIL Conformance :

No

IEC Conformance :

No

Height Above Board :

0.079 2.00mm

Filter Feature :

No

Mating Cycles :

20

Reference Standard :

UL

Contact Style :

BELLOWED TYPE

Operating Temperature :

-40°C~85°C

Contact Gender :

FEMALE

Number of Positions :

22

Mixed Contacts :

No

Contact Finish :

Gold
