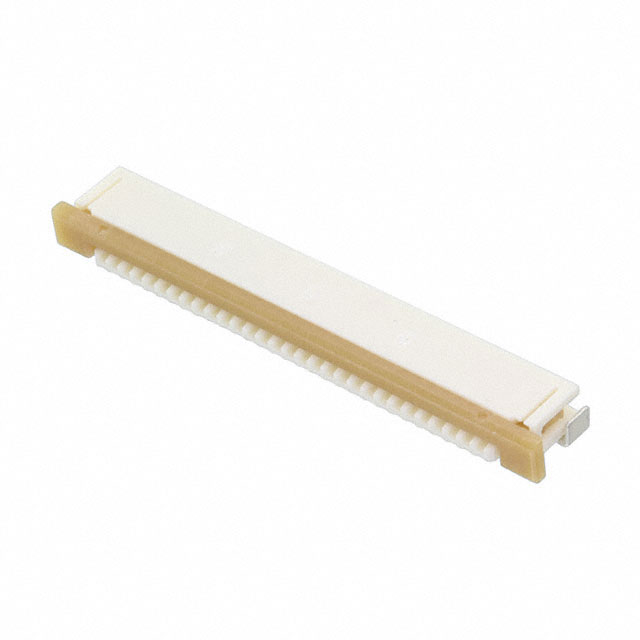

0522713069

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

DIN Conformance :

No

Packaging :

Tape and Reel (TR)

Contact Finish Thickness :

3.94μin 0.10μm

Mounting Type :

Surface Mount, Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated :

50V

Number of Positions :

30

Actuator Material :

Polyphenylene Sulfide (PPS)

Pbfree Code :

yes

Contact Gender :

FEMALE

RoHS Status :

ROHS3 Compliant

Height Above Board :

0.118 3.00mm

Feature :

Solder Retention, Zero Insertion Force (ZIF)

UL Flammability Code :

94V-0

Housing Material :

Polyamide (PA46), Nylon 4/6

Contact Finish :

Gold

Factory Lead Time :

12 Weeks

Pitch :

0.039 1.00mm

Contact Material :

Phosphor Bronze

IEC Conformance :

No

FFC, FCB Thickness :

0.30mm

MIL Conformance :

No

Operating Temperature :

-40°C~85°C

JESD-609 Code :

e3

Number of Rows :

1

Mixed Contacts :

No

Termination :

Solder

Total Number of Contacts :

30

Connector/Contact Type :

Contacts, Bottom

Current Rating (Amps) :

0.5A

Series :

52271

Locking Feature :

Slide Lock

Material Flammability Rating :

UL94 V-0

Cable End Type :

Tapered

Filter Feature :

No

Flat Flex Type :

FPC

Option :

GENERAL PURPOSE
