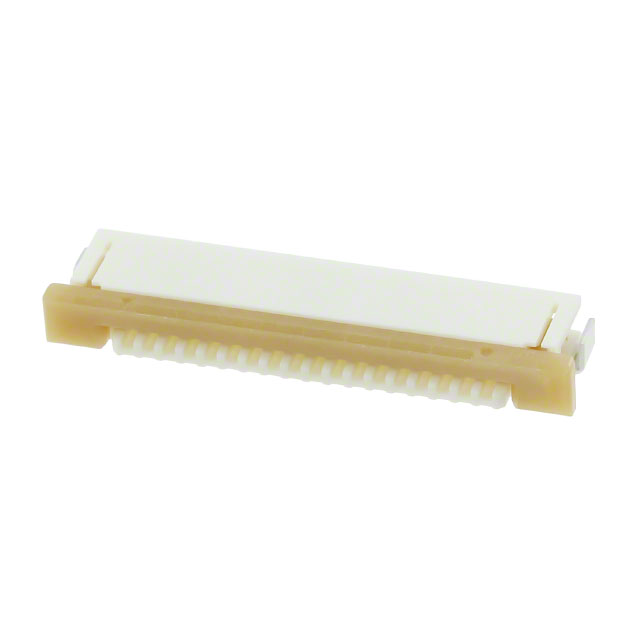

0522711869
Or copy the link below:
- Mfr.Part #
- 0522711869
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC BOTTOM 18POS 1.00MM R/A
- Stock
- 5,603
- In Stock ：
- 5,603
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Mounting Type :
- Surface Mount, Right Angle
- Series :
- 52271
- Factory Lead Time :
- 15 Weeks
- Cable End Type :
- Tapered
- Pbfree Code :
- yes
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Locking Feature :
- Slide Lock
- FFC, FCB Thickness :
- 0.30mm
- Number of Positions :
- 18
- Current Rating (Amps) :
- 0.5A
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Flat Flex Type :
- FPC
- Termination :
- Solder
- Voltage - Rated :
- 50V
- Connector/Contact Type :
- Contacts, Bottom
- Housing Material :
- Polyamide (PA46), Nylon 4/6
- Pitch :
- 0.039 1.00mm
- Height Above Board :
- 0.118 3.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Phosphor Bronze
- Mating Cycles :
- 30
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Material Flammability Rating :
- UL94 V-0
- Actuator Material :
- Polyphenylene Sulfide (PPS)
- Datasheets
- 0522711869
52271 Series FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 18 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A
0522711869 Overview
Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the 52271 Series.It is more powerful in many ways due to its Solder Retention, Zero Insertion Force (ZIF) feature.It operates at an operating temperature of -40°C~85°C.
0522711869 Features
52271 series
0522711869 Applications
There are a lot of Molex
0522711869 FFC, FPC (Flat Flexible) Connectors applications.
