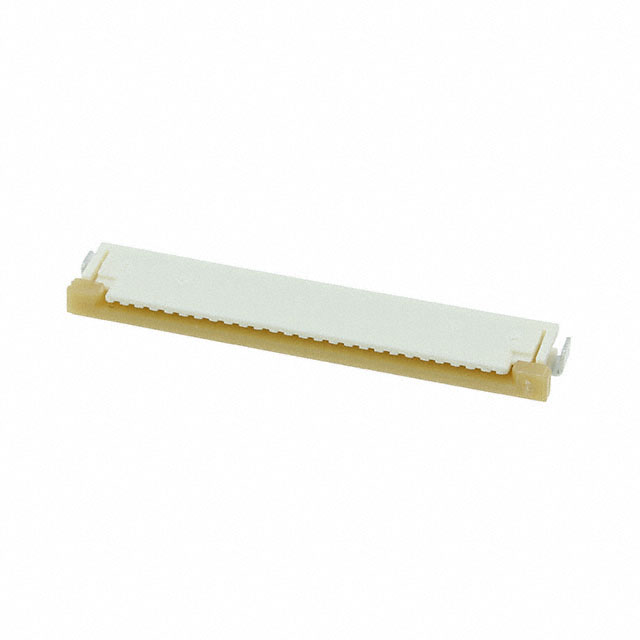

0522072633
Or copy the link below:
- Mfr.Part #
- 0522072633
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC FPC TOP 26POS 1MM R/A
- Stock
- 9,059
- In Stock ：
- 9,059
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Mating Cycles :
- 30
- Connector/Contact Type :
- Contacts, Top
- Termination :
- Solder
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- FFC, FCB Thickness :
- 0.30mm
- Contact Material :
- Phosphor Bronze
- Housing Color :
- White
- Current Rating (Amps) :
- 1A
- Packaging :
- Tape and Reel (TR)
- Number of Positions :
- 26
- Operating Temperature :
- -40°C~85°C
- Height Above Board :
- 0.106 2.70mm
- Cable End Type :
- Tapered
- Factory Lead Time :
- 17 Weeks
- Series :
- Easy-On 52207
- Actuator Color :
- Brown
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Pitch :
- 0.039 1.00mm
- Flat Flex Type :
- FFC, FPC
- Voltage - Rated :
- 125V
- Contact Finish :
- TIN BISMUTH
- Mounting Type :
- Surface Mount, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Actuator Material :
- Polyphenylene Sulfide (PPS)
- Locking Feature :
- Slide Lock
- Datasheets
- 0522072633
Easy-On 52207 Series FFC, FPC Contacts, Top Tape & Reel (TR) 0.039 1.00mm Solder 26 Positions Surface Mount, Right Angle Tin Bismuth -40°C~85°C 1A
0522072633 Overview
There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Easy-On 52207 belongs to the Easy-On 52207 Series.In many ways, it is more powerful due to its Solder Retention, Zero Insertion Force (ZIF) feature.This device operates at a temperature of -40°C~85°C.
0522072633 Features
Easy-On 52207 series
0522072633 Applications
There are a lot of Molex
0522072633 FFC, FPC (Flat Flexible) Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
