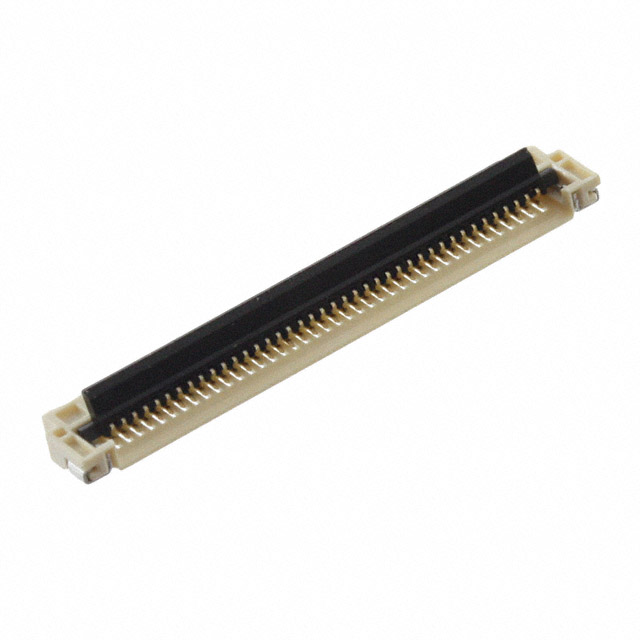

0512964094
Or copy the link below:
- Mfr.Part #
- 0512964094
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC BOTTOM 40POS 0.50MM R/A
- Stock
- 3,072
- In Stock ：
- 3,072
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Number of Rows :
- 1
- JESD-609 Code :
- e4
- Housing Color :
- Beige
- Actuator Color :
- Black
- Contact Style :
- BELLOWED TYPE
- Flat Flex Type :
- FFC, FPC
- Packaging :
- Cut Tape (CT)
- Body Breadth :
- 0.051 inch
- Total Number of Contacts :
- 40
- IEC Conformance :
- No
- Height Above Board :
- 0.051 1.30mm
- Contact Gender :
- FEMALE
- MIL Conformance :
- No
- Connector Type :
- FFC/FPC CONNECTOR
- Operating Temperature :
- -20°C~85°C
- Additional Feature :
- EASY-ON, POLARIZED
- Withdrawl Force-Min :
- ZIF N
- Factory Lead Time :
- 20 Weeks
- Cable End Type :
- Straight, Tapered
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Option :
- GENERAL PURPOSE
- Current Rating (Amps) :
- 0.5A
- Number of Positions :
- 40
- Reference Standard :
- UL
- RoHS Status :
- ROHS3 Compliant
- Locking Feature :
- Flip Lock
- Connector/Contact Type :
- Contacts, Bottom
- Filter Feature :
- No
- Pbfree Code :
- yes
- Voltage - Rated :
- 50V
- Contact Material :
- Phosphor Bronze
- Insulation Resistance :
- 50000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Length or Diameter :
- 0.933 inch
- Contact Pattern :
- RECTANGULAR
- Series :
- Easy-On 51296
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Actuator Material :
- Polyamide (PA9T), Nylon 9T, Glass Filled
- Mounting Type :
- Surface Mount, Right Angle
- ECCN Code :
- EAR99
- UL Flammability Code :
- 94V-0
- Reliability :
- COMMERCIAL
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Contact Finish :
- Gold
- Mixed Contacts :
- No
- Number Of PCB Rows :
- 1
- DIN Conformance :
- No
- Mounting Option 1 :
- LOCKING
- Mating Cycles :
- 20
- Insertion Force-Max :
- ZIF N
- Pitch :
- 0.020 0.50mm
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- FFC, FCB Thickness :
- 0.30mm
- Body Depth :
- 0.169 inch
- Datasheets
- 0512964094
0512964094 Documents
Easy-On 51296 Series FFC, FPC Contacts, Bottom Cut Tape (CT) 0.020 0.50mm Solder 40 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
0512964094 Overview
The product comes in a package of FFC/FPC CONNECTOR.This device's mounting type is Surface Mount, Right Angle.It's packaged in a Cut Tape (CT) case.Easy-On 51296 Series product.There are also features like EASY-ON, POLARIZED, just to name a few.Its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful in a number of ways.Running in -20°C~85°C Operating Temperature.
0512964094 Features
Easy-On 51296 series
0512964094 Applications
There are a lot of Molex
0512964094 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
