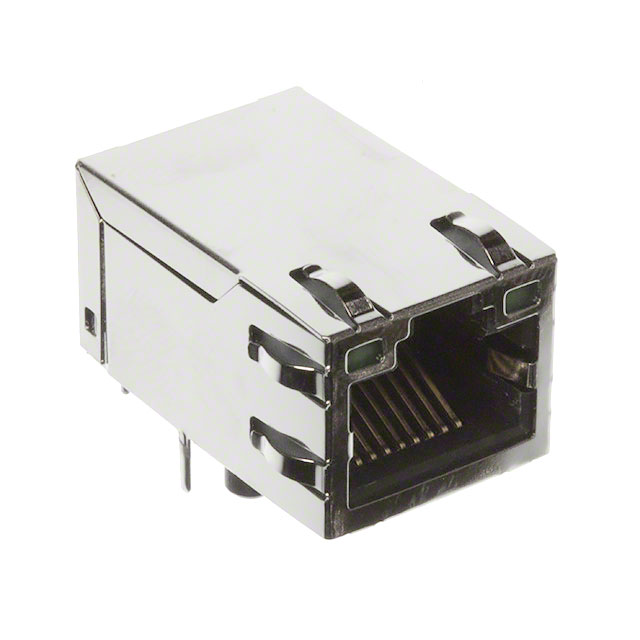

0480251090

Manufacturer :

Molex

Product Category :

Modular Connector Jacks With Magnetics

Body/Shell Style :

JACK

Feature :

Board Guide

Contact Finish :

Gold

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Shielding :

Shielded, EMI Finger

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Termination :

Solder

Contact Material :

Phosphor Bronze

Empty Shell :

No

Height Above Board :

0.524 13.31mm

LED Color :

Green - Green

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

48025

Orientation :

90° Angle (Right)

Tab Direction :

UP

Shield Material :

Brass

Connector Type :

RJ45

Additional Feature :

POLARIZED

Filter Feature :

No

JESD-609 Code :

e3

MIL Conformance :

No

Applications :

10/100 Base-T, AutoMDIX

Contact Finish Thickness :

50.0μin 1.27μm

Number of Cores per Jack :

4

Factory Lead Time :

21 Weeks

Contact Gender :

FEMALE

IEC Conformance :

No

Operating Temperature :

-40°C~70°C

Number of Ports :

1

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

8

Mounting Type :

Through Hole

Packaging :

Tray

DIN Conformance :

No

Option :

GENERAL PURPOSE
