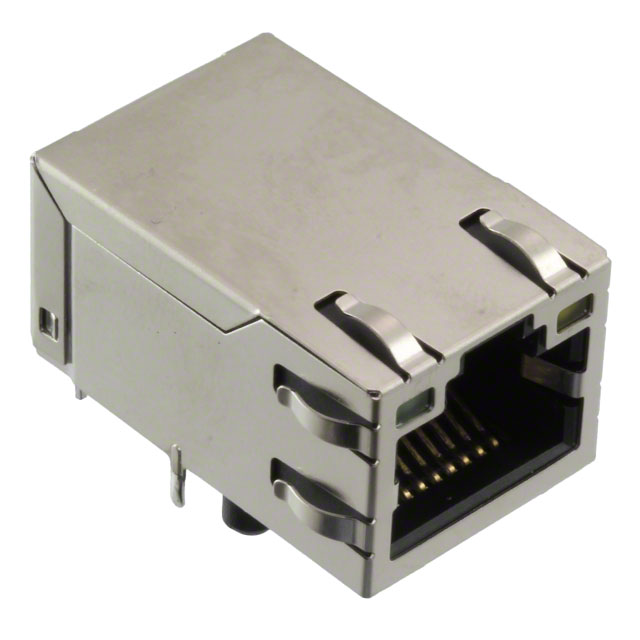

0480250002
- Mfr.Part #
- 0480250002
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 100 BASE-T PCB
- Stock
- 2
- In Stock :
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Modular Connector Jacks With Magnetics
- Factory Lead Time :
- 21 Weeks
- Contact Gender :
- FEMALE
- Contact Material :
- Phosphor Bronze
- Height Above Board :
- 0.524 13.31mm
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Filter Feature :
- No
- Additional Feature :
- POLARIZED
- Shielding :
- Shielded, EMI Finger
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Empty Shell :
- No
- Operating Temperature :
- -40°C~70°C
- RoHS Status :
- ROHS3 Compliant
- Number of Cores per Jack :
- 5
- Body/Shell Style :
- JACK
- Connector Type :
- RJ45
- Pbfree Code :
- yes
- Feature :
- Board Guide
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 8
- JESD-609 Code :
- e3
- Termination :
- Solder
- Housing Material :
- Thermoplastic, Glass Filled
- Packaging :
- Tray
- LED Color :
- Green - Yellow
- MIL Conformance :
- No
- Shield Material :
- Brass
- UL Flammability Code :
- 94V-0
- Orientation :
- 90° Angle (Right)
- Contact Finish :
- Gold
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Tab Direction :
- UP
- Series :
- 48025
- IEC Conformance :
- No
- Applications :
- 10/100 Base-T
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0480250002
