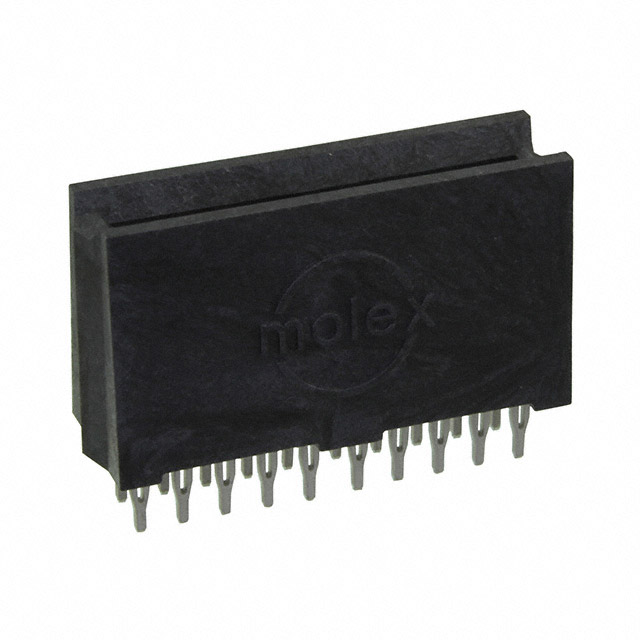

0457140001
- Mfr.Part #
- 0457140001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 4POS 0.508
- Stock
- 5,243
- In Stock :
- 5,243
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Edgeboard Connectors
- Contact Finish :
- Gold
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 4 (Power)
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Packaging :
- Tray
- IEC Conformance :
- No
- Card Type :
- Non Specified - Dual Edge
- Color :
- Black
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- UL Flammability Code :
- 94V-0
- Material - Insulation :
- Liquid Crystal Polymer (LCP)
- Factory Lead Time :
- 8 Weeks
- Empty Shell :
- No
- Shell Material :
- POLYETHYLENE
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Pitch :
- 0.508 12.90mm
- Mixed Contacts :
- No
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Read Out :
- Dual
- Series :
- Extreme Power Edge 45714
- Card Thickness :
- 0.093 2.36mm
- MIL Conformance :
- No
- Filter Feature :
- No
- Termination :
- Press-Fit
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 4
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 0457140001
